Double Jacket ADSS Cable Large Span 200M to 1500M

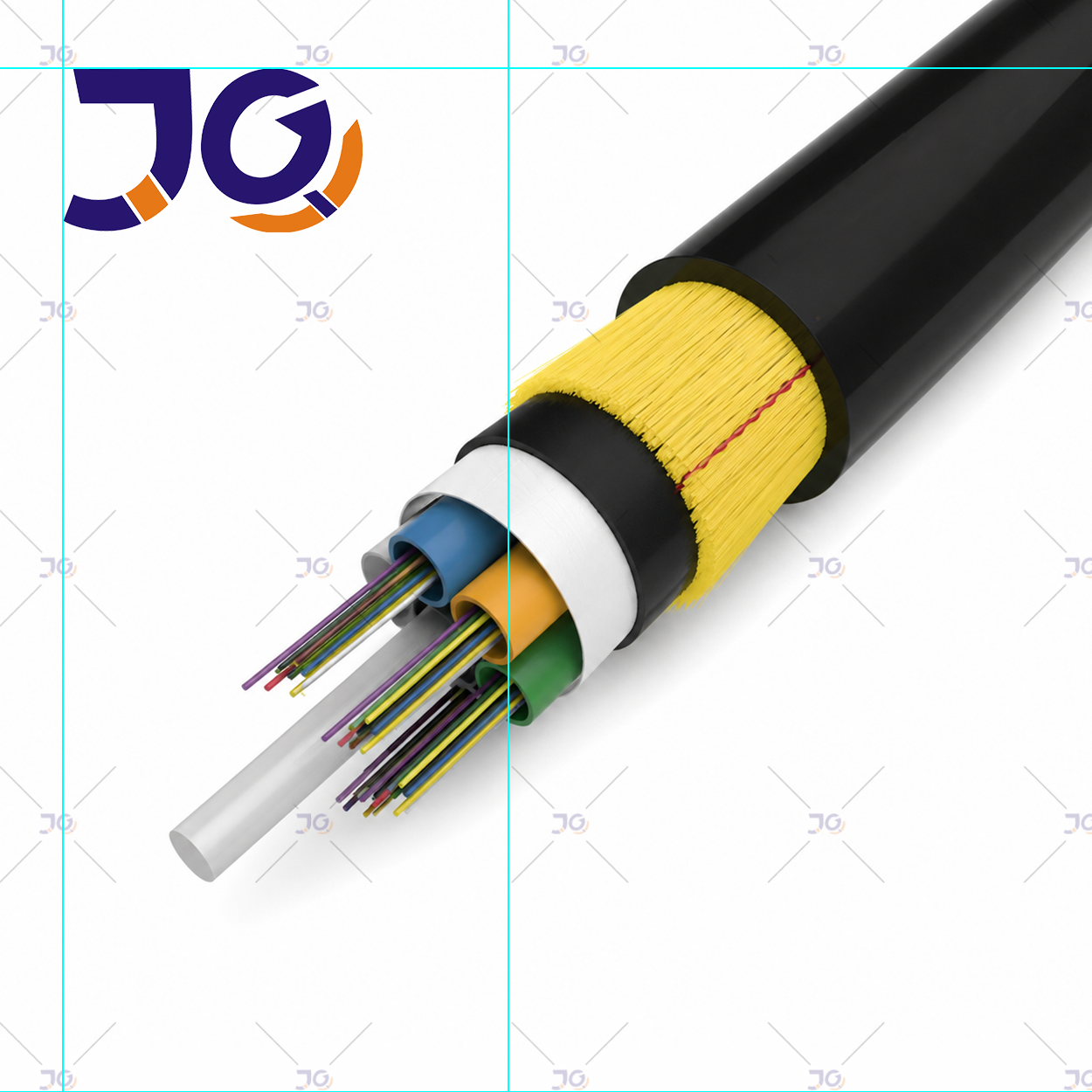

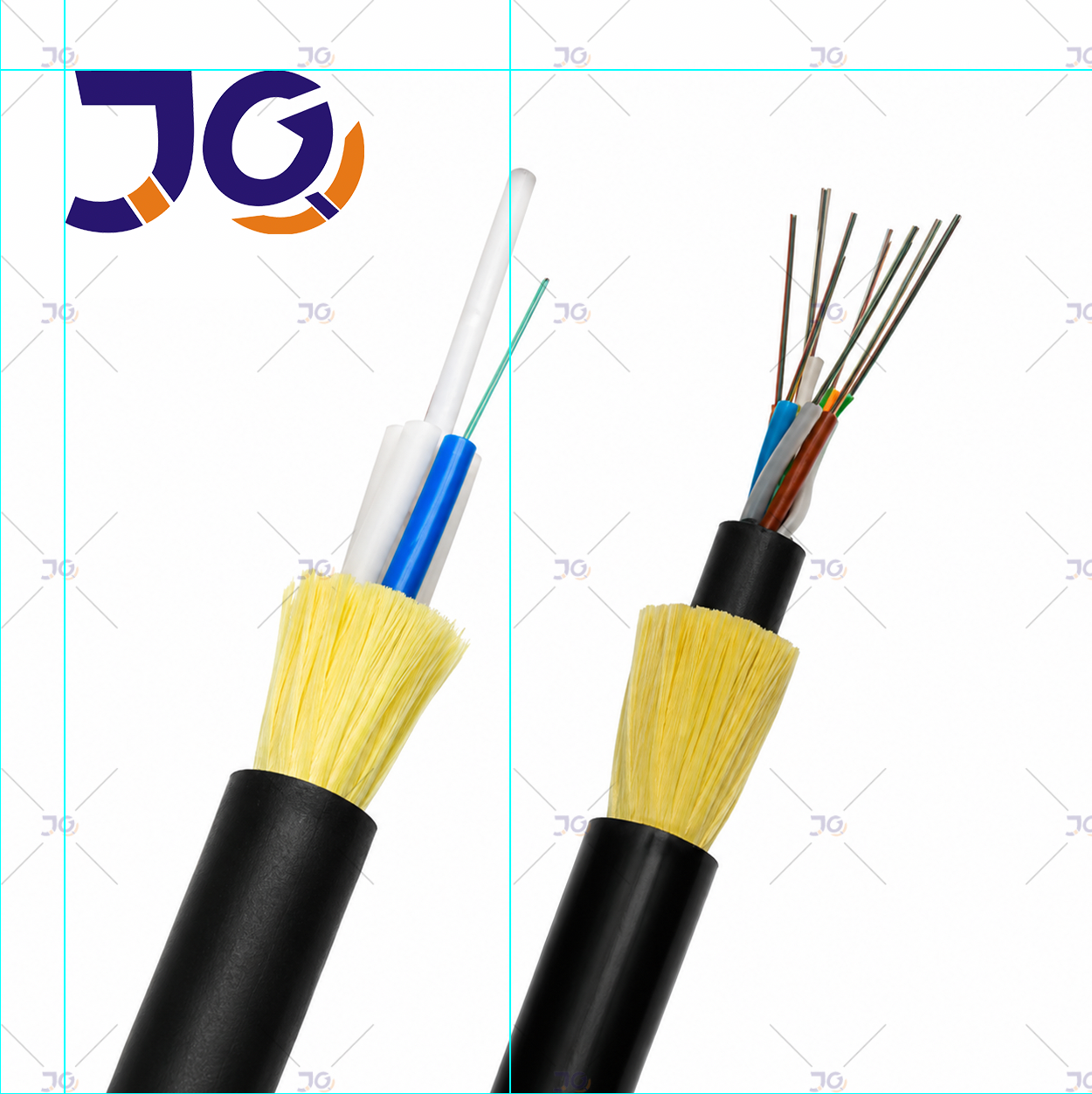

ADSS Cable is loose tube stranded. The 250um bare fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of armaid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Model: JQ Fiber Double Jackets ADSS Fiber Optic Cable;
Fiber Type: ITU G652D, G657A, OM1, OM2, OM3, OM4;
Fiber Count: 2-88 Core Is Available;
Span: 200M, 400M, 600M, Up to 1000M;
Standard: IEC 60794-4、 IEC 60793、TIA/EIA 598 A;

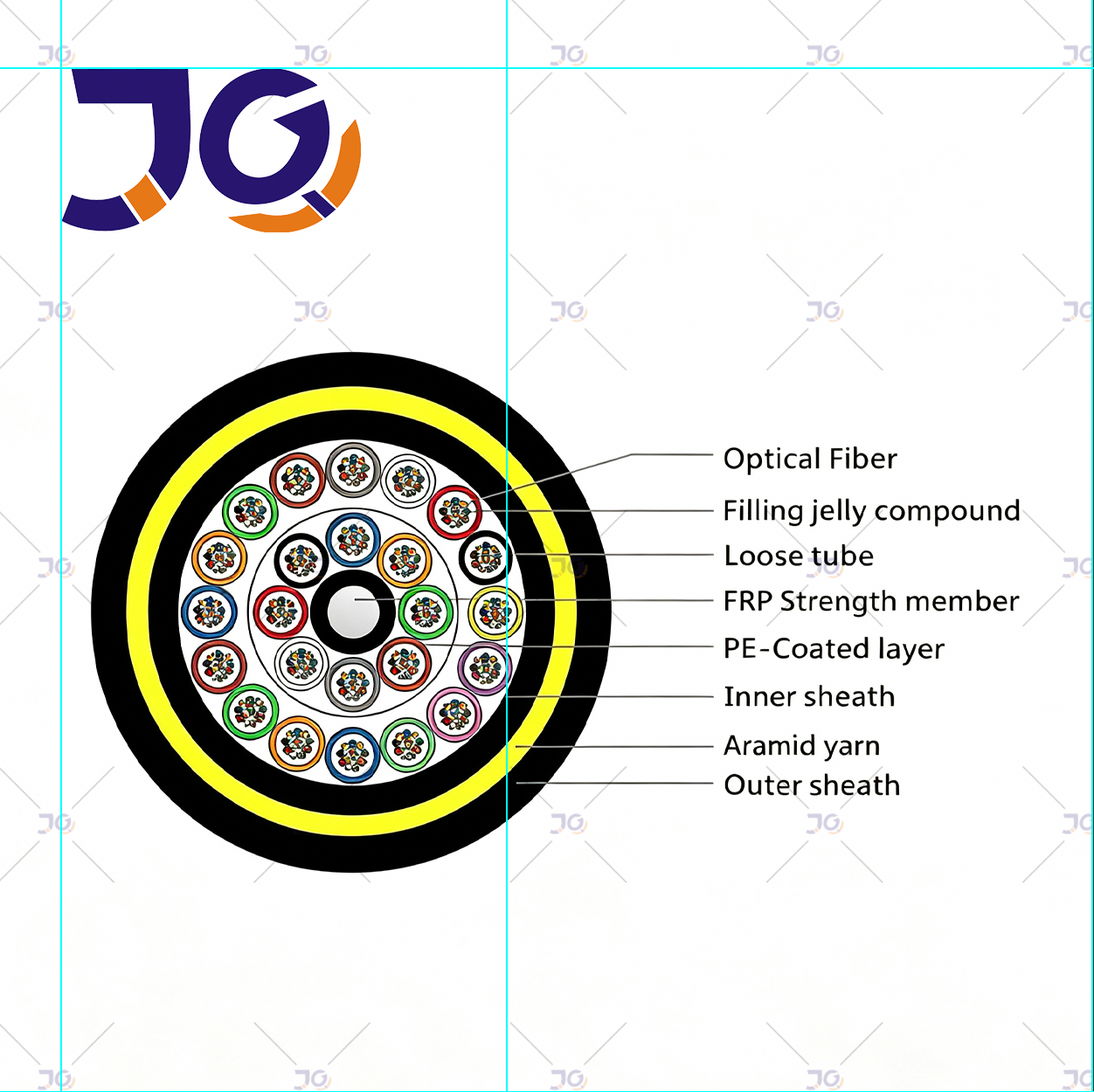

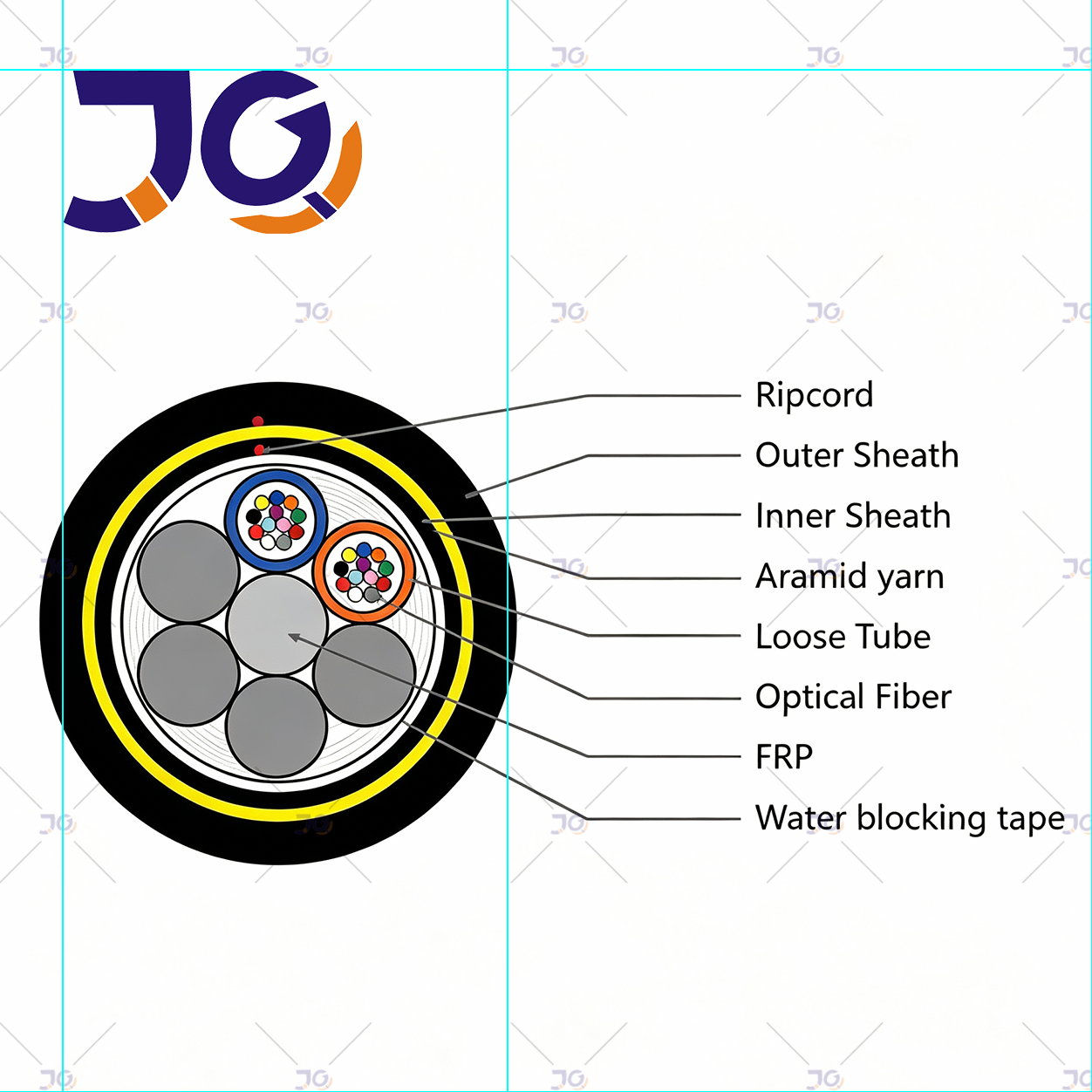

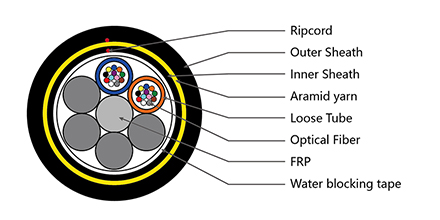

Structure Design:
Application:
The design of ADSS cable takes full account of the actual situation of power lines and is suitable for different grades of high voltage transmission lines. Polyethylene ( PE ) sheath can be used for 10 kV and 35 kV power lines. For 110 kV and 220 kV power lines, the optical cable hanging point must be determined by calculating the electric field strength distribution and the electric mark ( AT ) outer sheath must be adopted. At the same time, the amount of aramid fiber and the perfect stranding process were carefully designed to meet the application requirements of different spans.
Main Features:
1. Two Jacket and stranded loose tube design . Stable performance and compatibility with all common fiber types;
2. Track -Resistant outer jacket available for the high voltage ( ≥35KV)
3. Gel-Filled buffer tubes are S-Z stranded
4. Instead of Aramid yarn or glass yarn,there is no support or messenger wire required. Aramid yarn is used as the strength member to assure the tensile and strain Performance
5. Fiber counts from 6 to 288fibers
6. Span up to 1000meter
7. Life expectancy up to 30 years
Standards: JQ Technology’s ADSS Cable complies with IEC 60794-4, IEC 60793, TIA/EIA 598 A standards.
Advantages of JQ Fiber’ ADSS Fiber Cable:
1.Good aramid yarn have excellent tensile performance;
2.Fast delivery, 200km ADSS cable regular production time about 10 days;
3.Can using glass yarn instead of aramid to anti rodent.

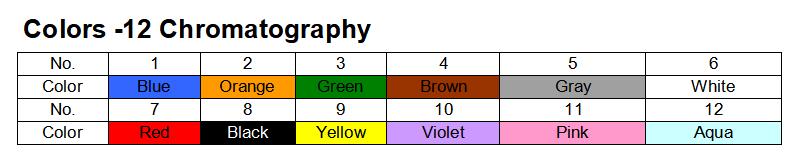

Colors -12 Chromatography：
Fiber Optic Characteristics:
| Parameters | Specification | |
| Optical Characteristics | ||
| Fiber Type | G652.D | |
| Mode Field Diameter (um) | 1310nm | 9.1 ± 0.5 |
| 1550nm | 10.3 ± 0.7 | |
| Attenuation Coefficient (dB/km) | 1310nm | ≤ 0.35 |
| 1550nm | ≤ 0.21 | |
| Attenuation Non-uniformity (dB) | ≤ 0.05 | |
| Zero Dispersion Wavelength ( λ0) (nm) | 1300 ～ 1324 | |
| Max Zero Dispersion Slope (S0max) (ps/(nm2·km)) | ≤ 0.093 | |
| Polarization Mode Dispersion Coefficient (PMDQ) (ps/km1/2) | ≤ 0.2 | |
| Cut-off Wavelength (λcc) (nm) | ≤ 1260 | |
| Dispersion Coefficient (ps/ (nm·km)) | 1288~1339nm | ≤ 3.5 |
| 1550nm | ≤ 18 | |
| Effective Group Index of Refraction (Neff) | 1310nm | 1.466 |
| 1550nm | 1.467 | |
| Geometric characteristic | ||
| Cladding Diameter (um) | 125.0 ± 1.0 | |
| Cladding Non-circularity (%) | ≤ 1.0 | |
| Coating Diameter (um) | 245.0 ± 10.0 | |
| Coating-cladding Concentricity Error (um) | ≤ 12.0 | |
| Coating Non-circularity (%) | ≤ 6.0 | |
| Core-cladding Concentricity Error (um) | ≤ 0.8 | |
| Mechanical characteristic | ||
| Curling (m) | ≥ 4 | |
| Proof Stress (GPa) | ≥ 0.69 | |
| Coating Strip Force (N) | Average Value | 1.0 5.0 |
| Peak Value | 1.3 ~ 8.9 | |
| Macro Bending Loss (dB) | Ф60mm, 100 Circles, @ 1550nm | ≤ 0.05 |
| Ф32mm, 1 Circle, @ 1550nm | ≤ 0.05 | |
2-144 Core Double Jackets ADSS Cable Specifications:
|
No. of cable
|
/ | 6~30 | 32~60 | 62~72 | 96 | 144 | ||
| Design (Strength Member+Tube&Filler) |
/ | 1+5 | 1+5 | 1+6 | 1+8 | 1+12 | ||
| Fiber type | / | G.652D | ||||||
| Central Strength Member | Material | mm | FRP | |||||
| Diameter (±0.05mm) |
1.5 | 1.5 | 2.0 | 2.0 | 2.0 | |||
| Loose Tube | Material | mm | PBT | |||||
| Diameter (±0.05mm) |
1.8 | 2.0 | 2.0 | 2.0 | 201 | |||
| Thickness (±0.03mm) |
0.32 | 0.35 | 0.35 | 0.35 | 0.35 | |||
| MAX.NO./per | 6 | 12 | 12 | 12 | 12 | |||
| Water Blocking Layer | Material | / | Flooding Compound | |||||
| Inner Sheath | Material | mm | PE | |||||
| Thickness | 0.9（nominal） | |||||||
| colour | black. | |||||||
| Additional Strength Member | Material | / | Aramid Yarn | |||||
| Outer Sheath | Material | mm | PE | |||||
| Thickness | 1.8（nominal） | |||||||
| colour | black. | |||||||
| Cable Diameter(±0.2mm) | mm | 10.6 | 11.1 | 11.8 | 13.6 | 16.5 | ||
| Cable Weight(±10.0kg/km) | kg/km | 95 | 105 | 118 | 130 | 155 | ||
| Attenuation coefficient | 1310nm | dB/km | ≤0.36 | |||||
| 1550nm | ≤0.22 | |||||||
| Cable breaking strength(RTS) | kn | ≥5 | ||||||
| Working Tension (MAT) | Kn | ≥2 | ||||||
| Wind velocity | m/s | 30 | ||||||
| Icing | mm | 5 | ||||||
| Span | M | 100 | ||||||
| Crush Resistance | Short Term | N/100mm | ≥2200 | |||||
| Long Term | ≥1100 | |||||||
| Min. bending radius | Without Tension | mm | 10.0×Cable-φ | |||||
| Under Maximum Tension | 20.0×Cable-φ | |||||||
| Temperature range （℃） |
Installation | ℃ | -20~+60 | |||||
| Transport&Storage | -40~+70 | |||||||
| Operation | -40~+70 | |||||||
The excellent quality and service of JQ’s ADSS cable have won the praise of a large number of customers at home and abroad, and the products are exported to many countries and regions such as South and North America, Europe, Asia and UEA. We can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of optical fiber ADSS cable is 2, 6, 12, 24, 48 cores, up to 288 cores.
Remarks:
Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Span or tensile strength
D, weather conditions
All Dielectric Self-Supporting (ADSS) Cable Double Sheath is a type of fiber optic cable designed for aerial installations, typically used for telecommunication and data transmission applications.
The ADSS cable is constructed using a central core made of optical fibers surrounded by layers of protective materials. The cable is designed to be self-supporting, meaning that it does not require an external support structure such as a messenger wire or a metallic cable to hold it in place. Instead, the ADSS cable is supported by the strength of its own structure, which makes it ideal for use in long distance installations.
The double sheath design of the ADSS cable provides an extra layer of protection against environmental factors such as UV radiation, moisture, and temperature variations. The outer sheath is usually made of a high-density polyethylene (HDPE) material, which provides excellent resistance to weathering and mechanical damage. The inner sheath is made of a low-friction material such as nylon, which helps to reduce the friction between the cable and the central core during installation.
JQ Fiber’s double jackets ADSS fiber optic cable complies with standard IEC 60794-4、 IEC 60793、TIA/EIA 598 A.
Fiber Optic Characteristics:
| Parameters | Specification | |
| Optical Characteristics | ||
| Fiber Type | G652.D | |
| Mode Field Diameter (um) | 1310nm | 9.1 ± 0.5 |
| 1550nm | 10.3 ± 0.7 | |
| Attenuation Coefficient (dB/km) | 1310nm | ≤ 0.35 |
| 1550nm | ≤ 0.21 | |
| Attenuation Non-uniformity (dB) | ≤ 0.05 | |
| Zero Dispersion Wavelength ( λ0) (nm) | 1300 ～ 1324 | |
| Max Zero Dispersion Slope (S0max) (ps/(nm2·km)) | ≤ 0.093 | |
| Polarization Mode Dispersion Coefficient (PMDQ) (ps/km1/2) | ≤ 0.2 | |
| Cut-off Wavelength (λcc) (nm) | ≤ 1260 | |
| Dispersion Coefficient (ps/ (nm·km)) | 1288~1339nm | ≤ 3.5 |
| 1550nm | ≤ 18 | |
| Effective Group Index of Refraction (Neff) | 1310nm | 1.466 |
| 1550nm | 1.467 | |
| Geometric characteristic | ||
| Cladding Diameter (um) | 125.0 ± 1.0 | |
| Cladding Non-circularity (%) | ≤ 1.0 | |
| Coating Diameter (um) | 245.0 ± 10.0 | |
| Coating-cladding Concentricity Error (um) | ≤ 12.0 | |
| Coating Non-circularity (%) | ≤ 6.0 | |
| Core-cladding Concentricity Error (um) | ≤ 0.8 | |
| Mechanical characteristic | ||
| Curling (m) | ≥ 4 | |
| Proof Stress (GPa) | ≥ 0.69 | |
| Coating Strip Force (N) | Average Value | 1.0 5.0 |
| Peak Value | 1.3 ~ 8.9 | |
| Macro Bending Loss (dB) | Ф60mm, 100 Circles, @ 1550nm | ≤ 0.05 |
| Ф32mm, 1 Circle, @ 1550nm | ≤ 0.05 | |
2-144 Core Double Jackets ADSS Cable Specifications:
|
No. of cable
|
/
|
6~30
|
32~60
|
62~72
|
96
|
144
|
||
|
Design
(Strength Member+Tube&Filler) |
/
|
1+5
|
1+5
|
1+6
|
1+8
|
1+12
|
||
|
Fiber type
|
/
|
G.652D
|
||||||
|
Central Strength Member
|
Material
|
mm
|
FRP
|
|||||
|
Diameter
(±0.05mm) |
1.5
|
1.5
|
2.0
|
2.0
|
2.0
|
|||
|
Loose Tube
|
Material
|
mm
|
PBT
|
|||||
|
Diameter
(±0.05mm) |
1.8
|
2.0
|
2.0
|
2.0
|
201
|
|||
|
Thickness
(±0.03mm) |
0.32
|
0.35
|
0.35
|
0.35
|
0.35
|
|||
|
MAX.NO./per
|
6
|
12
|
12
|
12
|
12
|
|||
|
Water Blocking Layer
|
Material
|
/
|
Flooding Compound
|
|||||
|
Inner Sheath
|
Material
|
mm
|
PE
|
|||||
|
Thickness
|
0.9（nominal）
|
|||||||
|
colour
|
black.
|
|||||||
|
Additional Strength Member
|
Material
|
/
|
Aramid Yarn
|
|||||
|
Outer Sheath
|
Material
|
mm
|
PE
|
|||||
|
Thickness
|
1.8（nominal）
|
|||||||
|
colour
|
black.
|
|||||||
|
Cable Diameter(±0.2mm)
|
mm
|
10.6
|
11.1
|
11.8
|
13.6
|
16.5
|
||
|
Cable Weight(±10.0kg/km)
|
kg/km
|
95
|
105
|
118
|
130
|
155
|
||
|
Attenuation coefficient
|
1310nm
|
dB/km
|
≤0.36
|
|||||
|
1550nm
|
≤0.22
|
|||||||
|
Cable breaking strength(RTS)
|
kn
|
≥5
|
||||||
|
Working Tension (MAT)
|
Kn
|
≥2
|
||||||
|
Wind velocity
|
m/s
|
30
|
||||||
|
Icing
|
mm
|
5
|
||||||
|
Span
|
M
|
100
|
||||||
|
Crush Resistance
|
Short Term
|
N/100mm
|
≥2200
|
|||||
|
Long Term
|
≥1100
|
|||||||
|
Min. bending radius
|
Without Tension
|
mm
|
10.0×Cable-φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable-φ
|
|||||||
|
Temperature range
（℃） |
Installation
|
℃
|
-20~+60
|
|||||
|
Transport&Storage
|
-40~+70
|
|||||||
|
Operation
|
-40~+70
|
|||||||
Are you Looking for ideal All Dielectric Self-Supporting ADSS Cable Double Sheath Manufacturer & supplier ? gl-fiber.com have a wide selection at good prices to help you get creative. All the All Dielectric Self-Supporting ADSS Cable Double Sheath are quality guaranteed. We are China Origin Factory of All Dielectric Self-Supporting ADSS Cable Double Sheath. If you have any question, please feel free to contact us!

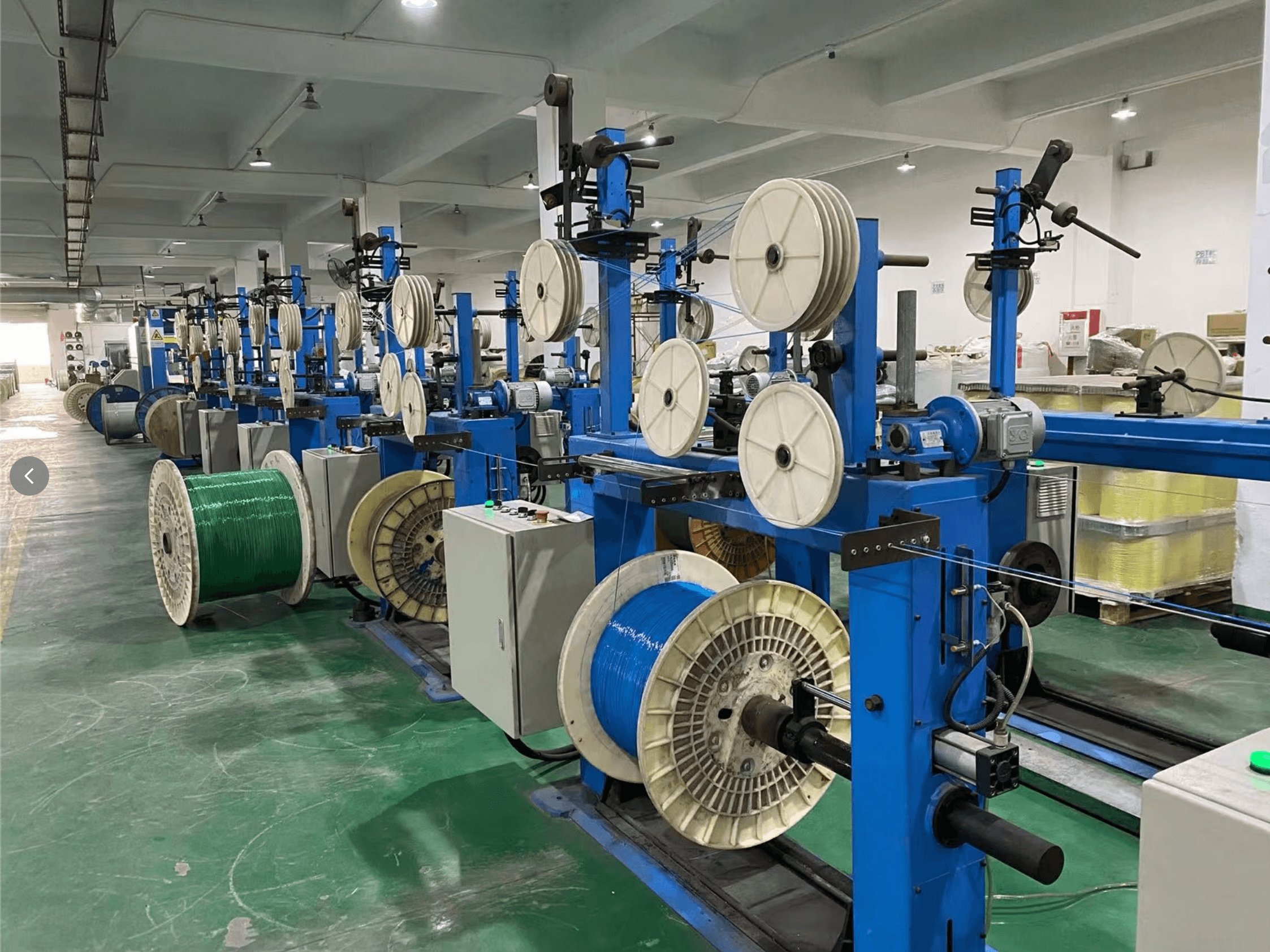

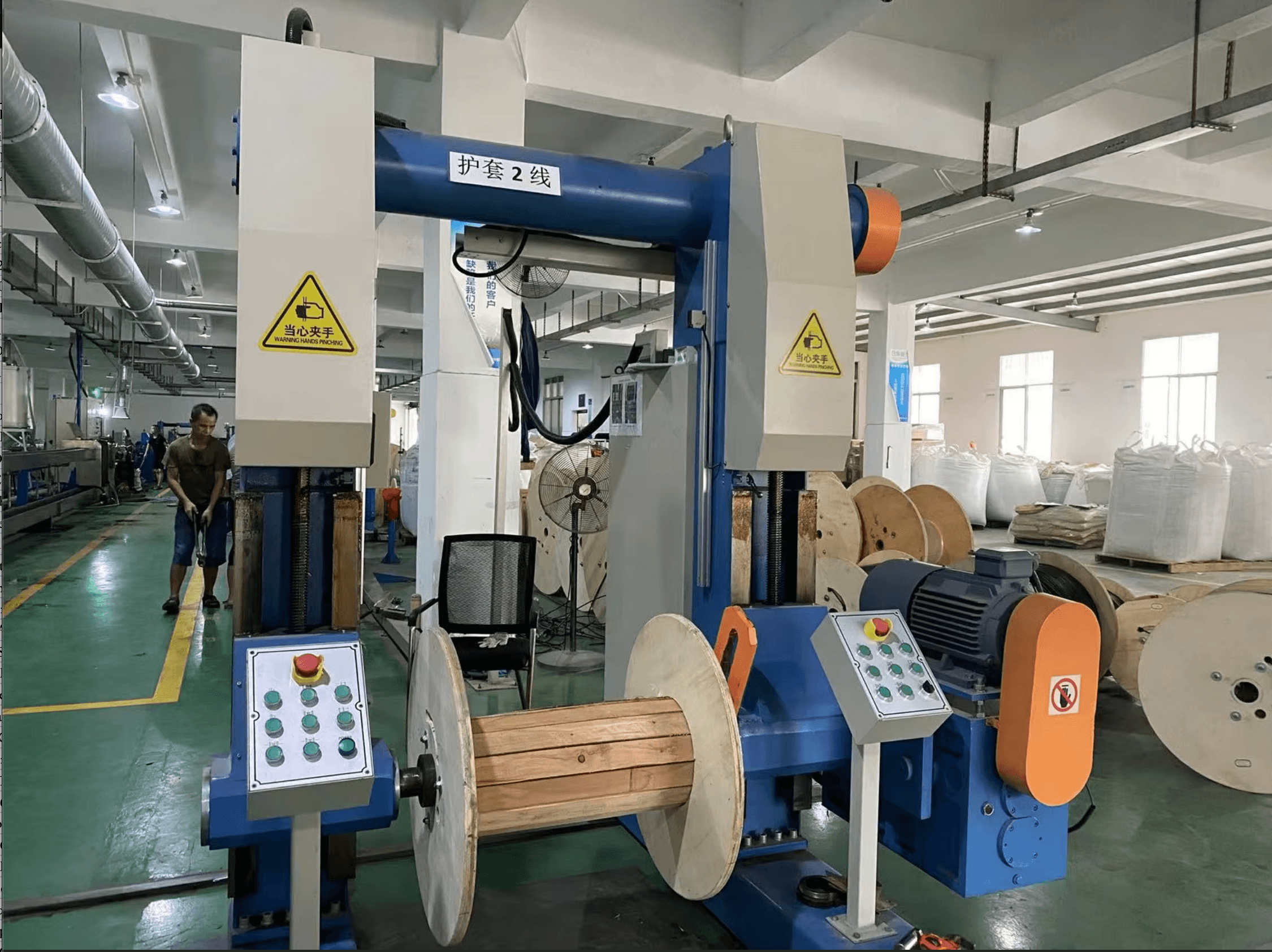

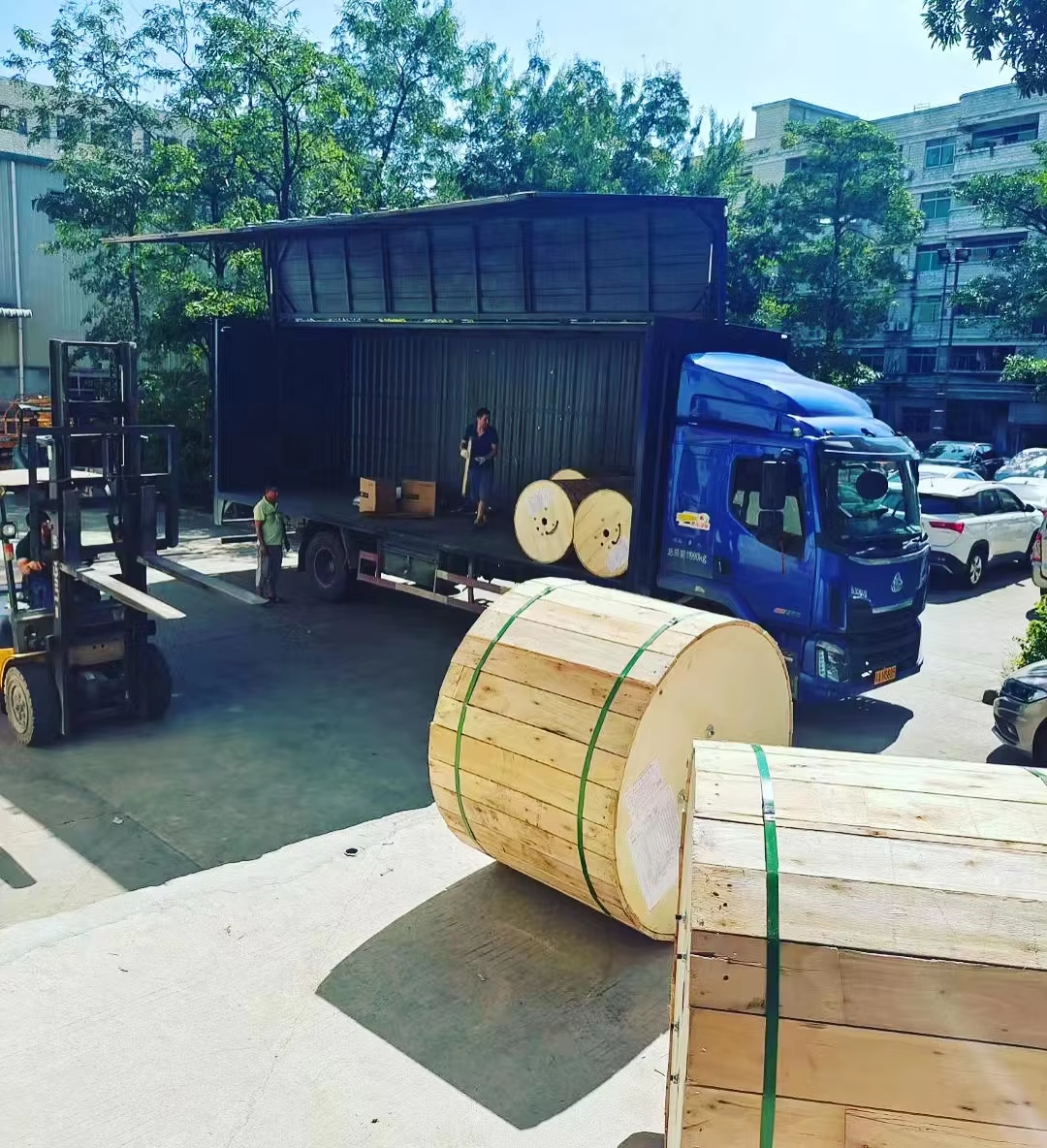

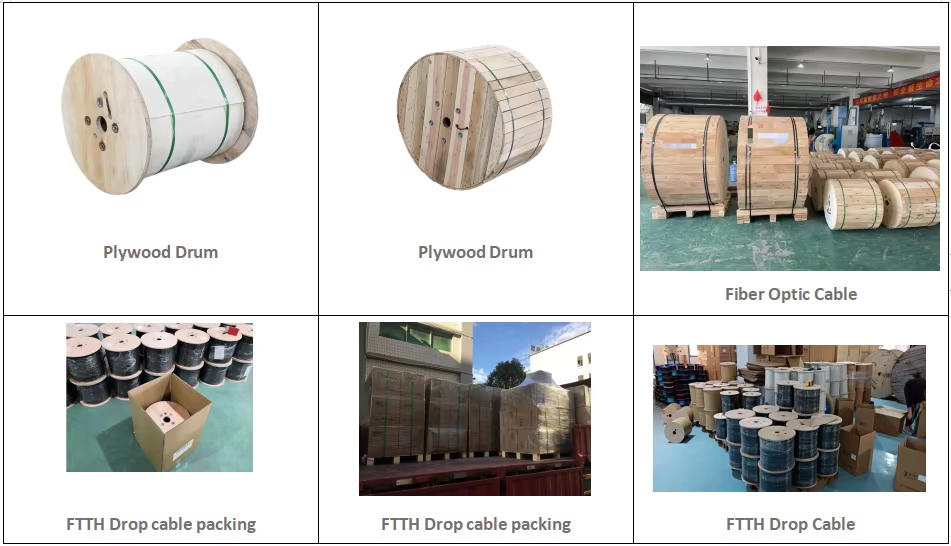

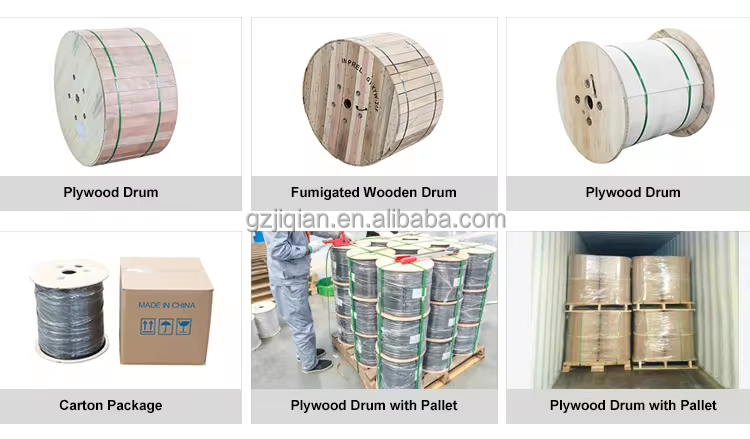

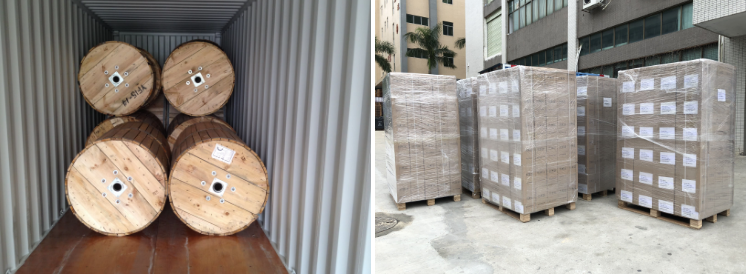

Our Packing and Delivery Process
