Excellent Tensile ADSS Fiber Optic Cable 12-144 Core Single Double Jacket for Networking communication

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO TLC
Model Number	ADSS -24B1.3
Minimum Order Quantity	1000M
Price	EXW $0.4/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 day
Payment Terms	T/T , L/C
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

Description

This “All Dielectric Self-Supporting (ADSS)” cable is designed for short, medium and long distance airborne self-supporting applications. ADSS cable provides a fast and economical deployment method for cable TV operators, telephone companies and power companies. It is suitable for power transmission systems across medium and short span conditions and complex terrain such as rivers, mountains, etc. Explanation

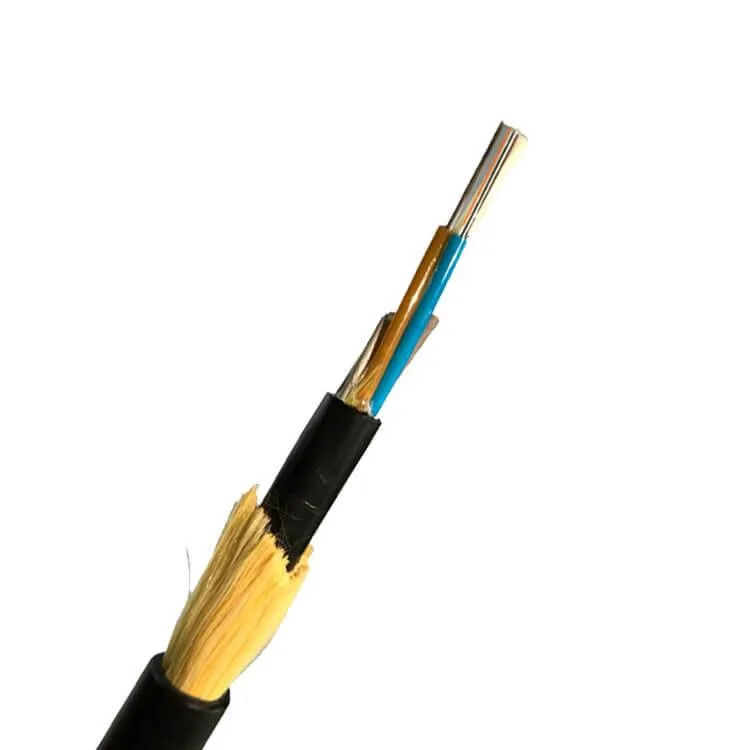

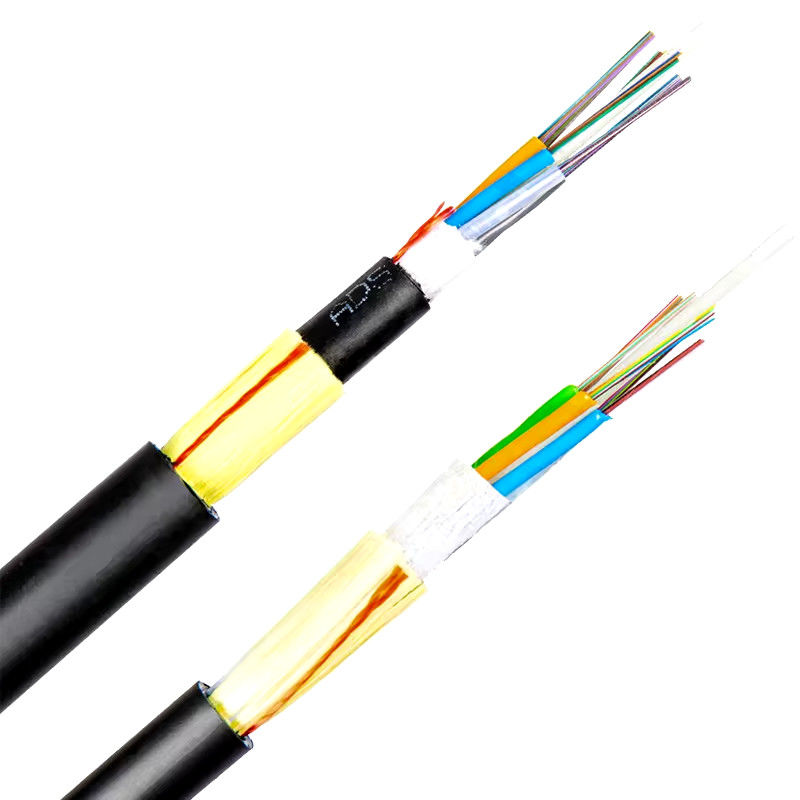

The cable consists of 5 to 36 bundles with tubes or fillers, wound up to three layers around the central reinforcement and fixed with a PE outer sheath. Each tube contains 6 to 12 fibers. All core fibers are filled with waterproof glue. The filler can be used to maintain the shape of the cable.

The water-swellable tape is wrapped around the cable core in a spiral. The aramid wires are arranged in a spiral to reinforce the perimeter of the cable. The outer sheath tightly wraps a layer of aramid wires. The cable sheath includes an optional inner polyethylene sheath and an outer polyethylene or AT (anti-skid) sheath. When the induced voltage on the cable surface exceeds 12KV, the AT outer sheath material is used. With AT outer sheath, the maximum electric field strength at the working point can reach 35KV. For long-distance applications, a double-layer sheath design can be considered. Optional pull wires can be placed under the sheath layer for easy removal.

Final cable diameter, weight and tensile parameters shall be confirmed by JQ according to the span, loading conditions and project requirements.

* Above table do not cover all of available types. Other ADSS cables can be manufactured upon customer’s request according to different span and sag environment.

Minimum Bending Radius:		Maximum Compressive Load:	4000N
Under installation:	20×OD	Repeated Impact:	4.4 N.m (J)
During operation	10×OD for unarmoured cables	Twist (Torsion):	180×10 times, 125×OD
	20×OD for armoured cables	Cyclic Flexing:	100 cycles
Operating Temperature Range:	-40℃(-40℉) to +70℃(+158℉)	Crush Resistance:	263 N/cm (approximately 150 lb/in)
Storage Temperature Range:	-50℃(-58℉) to +70℃(+158℉)
