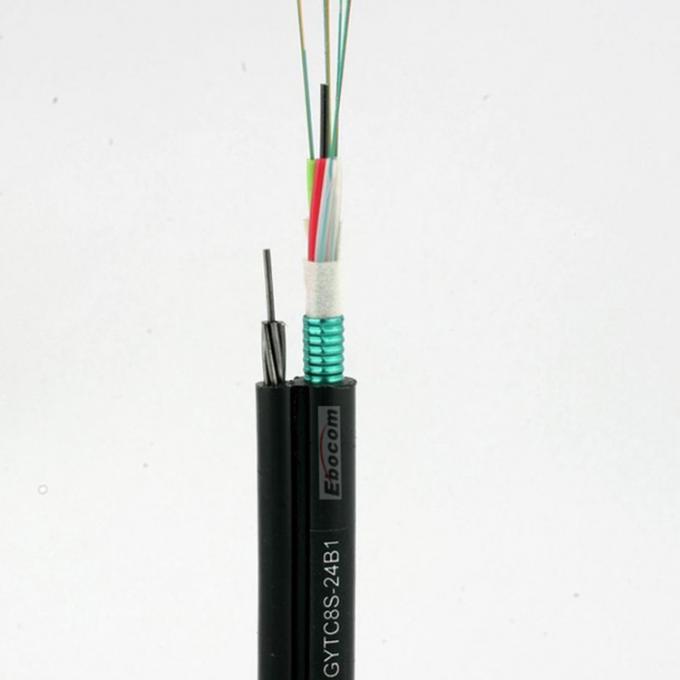

Figure 8 GYTC8S Fiber Optic Cable Self Supporting 12 Core Armored G652D PVC jacket single mode lac
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | Figure 8 |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.22/M ≥5000m $0.2/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 day |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Figure 8 Aerial self support cables are designed medium span aerial installations, they have ultraviolet and harsh outdoor environment protection.
GYTC8S Cable main structure:
Up to 12 fibers are there in each jelly filled plastic compound tube, which are stranded around a FRP strength member, water blocking tape and covered by a PE outer sheath. The cable core is fully dielectric so gives lightning protection. The upper part of figure 8 has seven number messenger wires made of stranded galvanized steel wire with PE outer sheath.
GYTC8S Cable Characteristics:
They have small diameter, light weight, good bend resistance performance.
The messenger cables support the fiber cables to withstand the tensile force for aerial installations.
The PE outer sheath gives excellent environment and ultraviolet protection to the cable.
Technical Specifications:
| Fiber Count | 2-8 | 10-12 | 14-24 | |
| Diameter of Self support member (Steel wire) | 7×0.9mm | 7×1.0mm | 7×1.2mm | |
| Diameter of Loose tube(mm) | 2.4 | 2.4 | 2.8 | |
| Diameter of Cable(mm) | 7.3 | 7.3 | 7.7 | |
| Min. bending radius | Static 10xD Dynamic 20xD | |||
| Max. tensile force, N(short term) | 2700N | 3000N | 4000N | |
| Max. tensile force, N(long term) | 800N | 1000N | 1500N | |
| Max Crush Resistance(N/100mm) | Short term/ Long term 1000N/300N | |||
| Allowable Temperatures | operation | -40°C – +60°C | ||
| storage | -50°C – +70°C | |||
| install. | -20°C – +50°C | |||
| Item Name | Fiber Optical Cable GYTC8S |
|---|---|
| Optical Mode | Single-mode/Multi-mode |
| Fiber | G652, G655, 50/125μm, 62.5/125μm |
| Total Fiber Count | 2-144 Cores |
| Bend Radius(Static/Dynamic) | 10D/20D |
| Application | Aerial Self-supporting,Local Network,Local Network,Long Distance Network Communication. |
