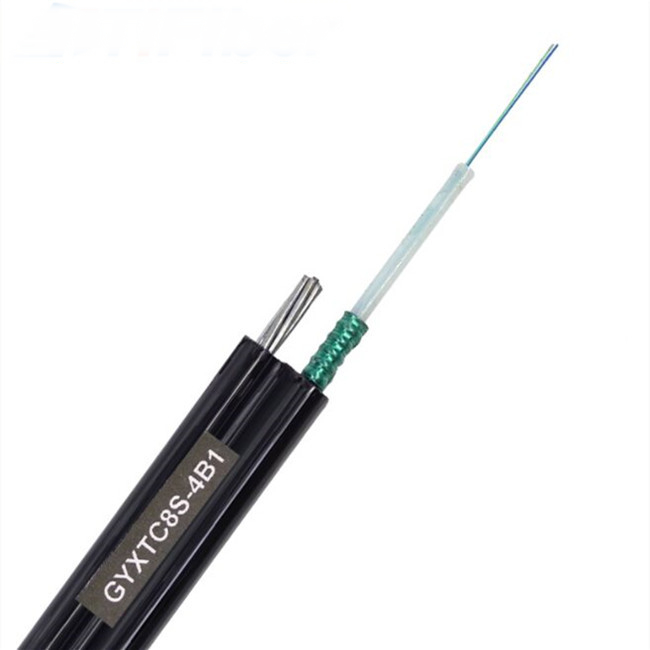

GYXTC8S Self-Supporting Figure 8 Fiber Optic Cable With Central Loose Tube
| Place of Origin | China |
| Brand Name | JQ |
| Certification | ISO |
| Model Number | GYXTC8S |
| Minimum Order Quantity | 2000M |
| Price | USD 0.05~0.1, Meter |
| Standard Packaging | Plywood Drum |
| Delivery Time | 10-15 days |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product Overview
The GYXTC8S fiber optic cable is a self-supporting Figure-8 outdoor cable designed for aerial installation in telecom networks, FTTH backbone lines, CCTV transmission, and long-distance access projects.

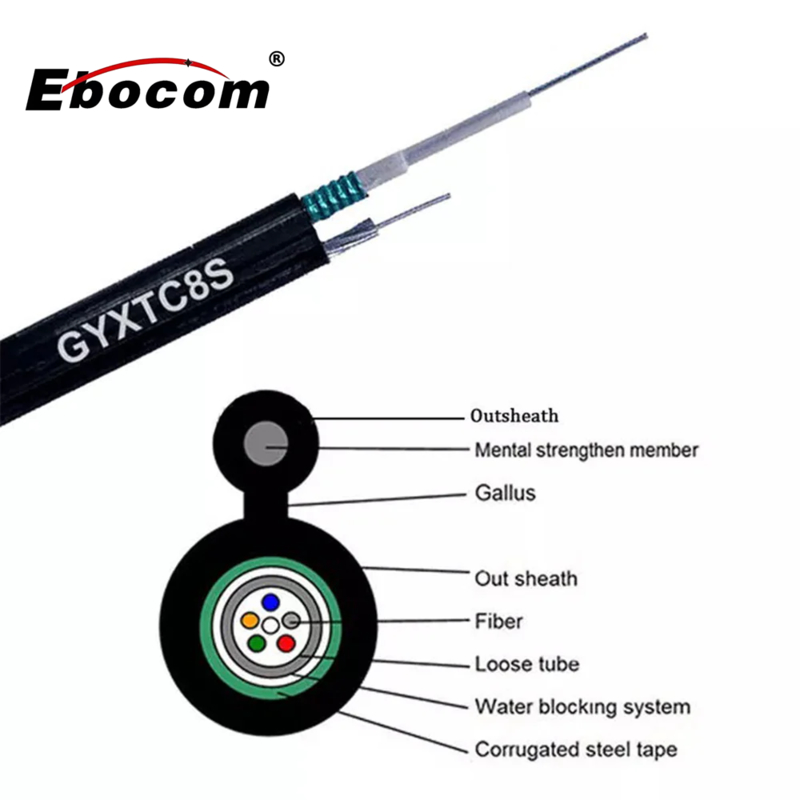

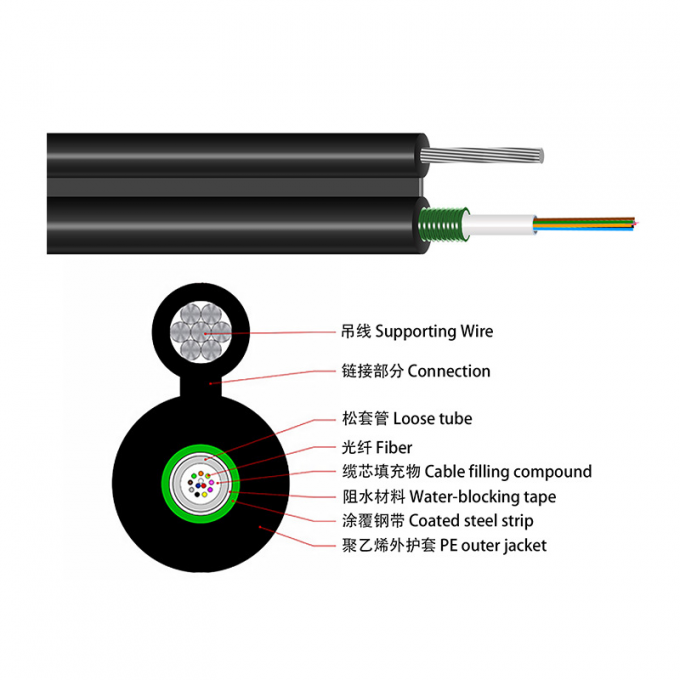

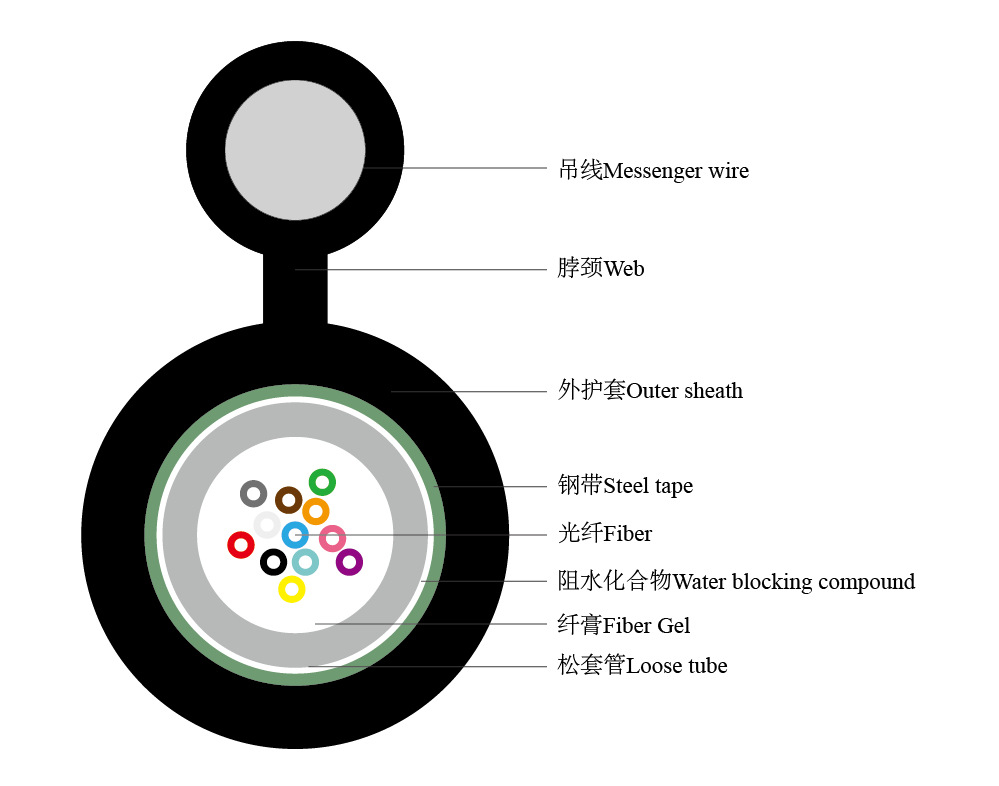

Its structure combines a central loose tube filled with gel, corrugated steel tape armor, and a separate messenger wire—either a galvanized steel strand or a single steel wire—forming a strong and reliable 8-shape profile ideal for pole-to-pole spans.
The GYXTC8S cable offers excellent mechanical strength, UV resistance, and moisture protection, making it one of the most popular choices for outdoor communication networks.
Key Features
-
Figure-8 self-supporting design with an independent messenger wire
-
Central loose tube structure, ideal for stability and easy fiber management
-
Corrugated steel tape armored (PSP) for enhanced crush resistance and rodent protection
-
Stable aerial performance, suitable for short and medium spans
-
PE outdoor jacket, UV-resistant and weatherproof
-
Water-blocking gel to prevent longitudinal moisture penetration
-
Messenger wire options:
-
1× galvanized steel wire
-
7-strand steel messenger (e.g., 7×1.0 mm or 7×0.3 mm)
-
Applications
-
Aerial installation on poles
-
FTTH / FTTB backbone distribution
-
CCTV security networks
-
Rural broadband projects
-
Municipal communication systems
-
Telecommunication long-distance transmission
Technical Specifications
| Item | Description |
|---|---|
| Cable Type | GYXTC8S Self-Supporting Central Tube Outdoor Fiber Cable |
| Fiber Count | 2–24 cores, optional |
| Fiber Type | G.652D / G.657A1 / G.657A2 / OM2 / OM3 / OM4 |
| Structure | Central loose tube + corrugated steel tape armor |
| Messenger Wire | Single steel wire or stranded steel wire (customizable) |
| Armoring | PSP (Polymer-Coated Steel Tape) |
| Outer Jacket | Black PE |
| Installation Method | Aerial, Figure-8 self-supported |
| Operating Temperature | –40°C to +70°C |
| Span Capability | Typically 50–300 meters (depending on messenger wire type) |
| Moisture Protection | Water-blocking gel inside loose tube |
Why Choose JQ?
-
12+ years of manufacturing experience in aerial fiber optic cables
-
Large-scale production capacity, ensuring stable supply and quick delivery
-
Strict quality control, with full fiber testing and material inspection
-
OEM/ODM support, including messenger type, fiber count, printing, packaging
-
Exported to Southeast Asia, Africa, Europe, Middle East, South America
| Model Name | GYXTC8S |
| Installation Temperature | -30°C To +60°C |
| Packing | 2-4km/wooden Drum |
| Life Time | 25-30 Years |
| Installation | Self- Supporting Aerial |
| Fiber Range | 2-24 Cores |
| Jacket Material | Polyethylene (PE) |
| Armored | Steel Tape Armored |
| Factory | Yes |
| Fiber Model | G652D G657A1 G657A2 |
