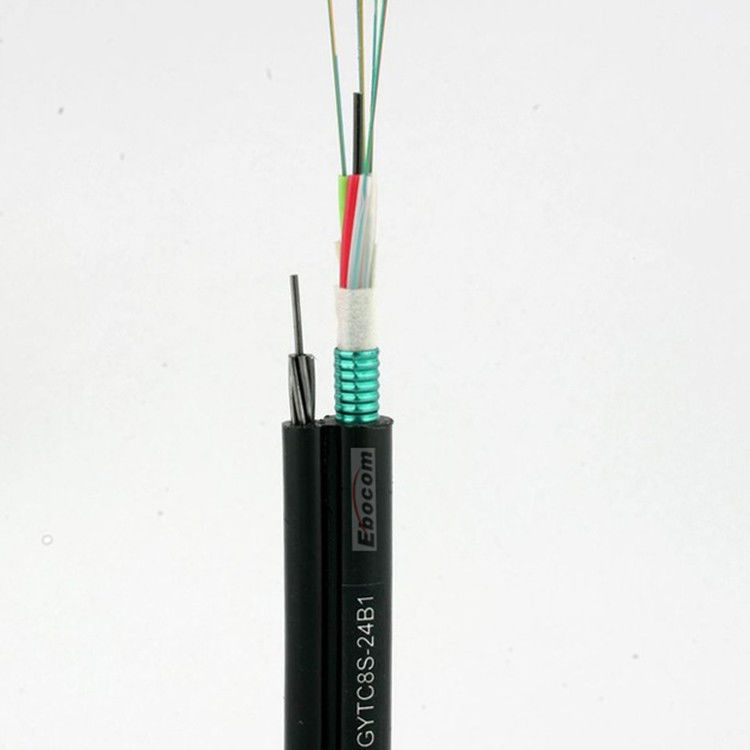

GYTC8S Figure-8 Self-Supporting Loose-Tube Fiber Optic Cable, 2–14 Cores, G.652D Single-Mode
| Place of Origin | Shandong，China |
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | GYTC8S |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.16/M ≥5000m $0.15/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 day |
| Payment Terms | T/T |
Description
GYTC8S fiber optic cable, the structure of the cable is made of high modulus plastic inpacked waterproof composite loose tube, single mode and multi-mode optical fiber, metal reinforced suspension line, steel-PE cement sheath of self-supporting loose tube twisted outdoor communication cable. There is an FRP in the middle of the cable core. The compact circular cable core is composed of a loose sleeve (packing gasket) and a center reinforced core, and the gap of the cable core is filled with a water-blocking compound. After laying the metal reinforced cable parallel to the cable core, the PE sheath is the cable core, and the cable core is longitudinally covered with a plastic plated plastic steel strip
Main feature
* Precise control of the additional length of the fiber to ensure good tensile resistance and environmental protection characteristics of the cable.
* Double-sided plastic plated steel tape provides an excellent moisture resistance and side compression resistance.
* Galvanized steel strand guarantees the tensile strength required for self-supporting cable installation.
* The cable is suitable for self-supporting overhead wiring with a span of 100m or less. It provides for more efficient construction while saving on suspension lines and cable hangers.
Application field
This product is suitable for long-distance and intra-office communication.
Fiber Specifications:
| Technical parameter of G.652D (B1.3) single-mode optical fiber | |||
| Characteristics | Conditions | Specified Values | Units |
| Optical Characteristics | |||
| Mode field diameter (MFD) | 1310nm 1550nm |
9.2±0.4 10.4±0.8 |
µm µm |
| Cut-off wavelength (λcc) | ≤1260 | nm | |
| Attenuation coefficient | 1310nm 1383nm 1550nm |
<0.35 <0.35 <0.22 |
dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | ≤0.05 | dB | |
| Dispersion coefficient | 1288~1339nm 1271~1360nm 1550nm |
≤3.5 ≤5.3 ≤18 |
Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | 1300~1324 | nm | |
| Max zero dispersion slope | ≤0.093 | Ps/(nm2.km) | |
| Group index of refraction (typical value) | 1310nm 1550nm |
1.466 1.467 |
|
| Geometric characteristic | |||
| Cladding diameter | 125.0±1.0 | µm | |
| Core/cladding concentricity error | ≤0.8 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10 | µm | |
| Cladding/coating concentricity error | ≤12.0 | µm | |
| Coating non-circularity | ≤8 | % | |
| Diameter of colored coating | 250.0±15 | µm | |
| Mechanical characteristic | |||
| Curling (radius) | ≥4 | m | |
| Proof stress | >0.69 | Gpa | |
| Coating strip force | Average value Peak value |
1.0-5.0 1.3-8.9 |
N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | ≥20 | ||
| Place Of Origin | Shandong,China |
| Fiber Count | 4-144Core |
| Product Name | GYTC8S |
| Brand Name | JQ |
| Jacket Sheath | HDPE,LZSH |
| Fiber Type | G652D,G657A1,G657A2 |
| Packing | 1000m/roll 2000m/roll |
