GYTC8S Figure-8 Steel-Tape Aerial Fiber Cable

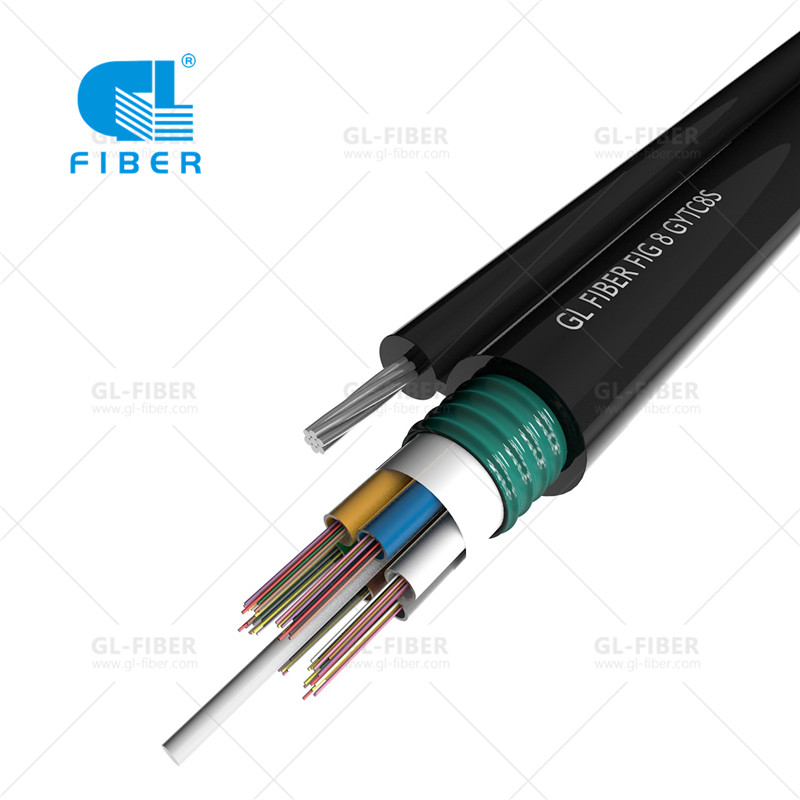

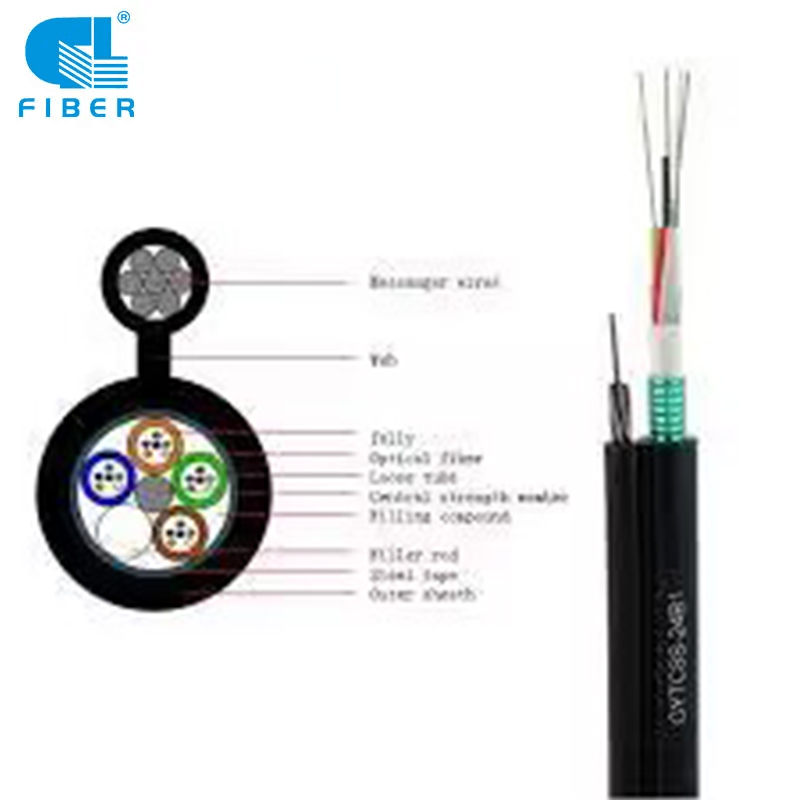

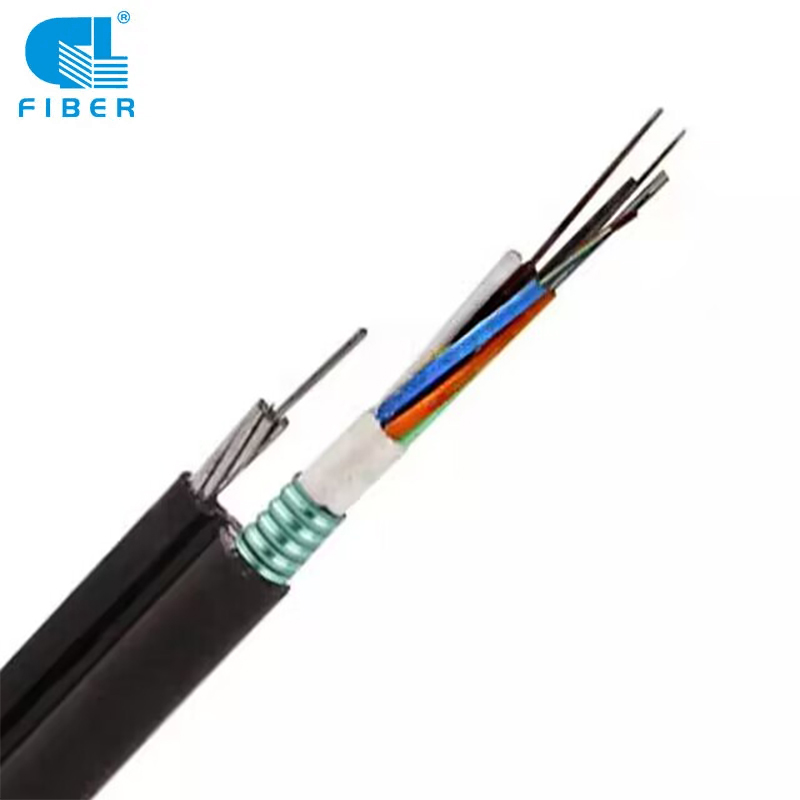

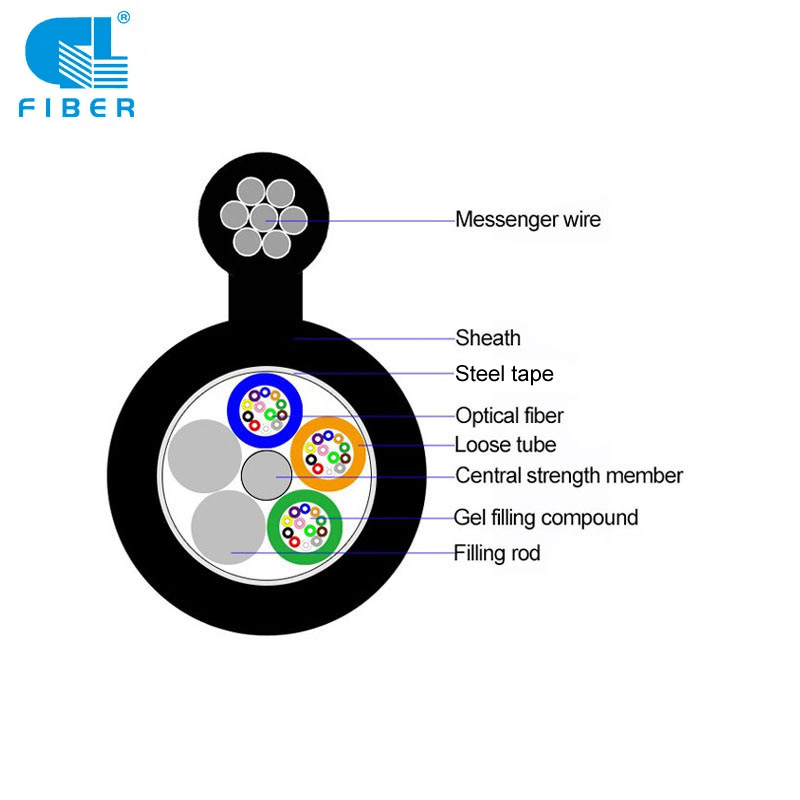

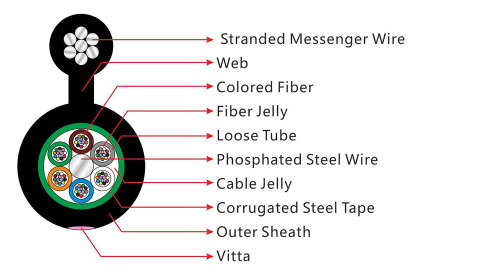

In the GYTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
Product Name: Figure-8 Cable with Steel Tape
Cable Type: GYTC8S
Application: Self supporting Aerial
1. High performance optical network operating.
2. High speed optical routes in buildings (FTTX).
3. All types of fiber cables with different structures.
Standards:
Comply with stand YD/T 901-2009 as well as IEC 60794-1
Structure Design
Application: Self supporting Aerial
1. High performance optical network operating.
2. High speed optical routes in buildings (FTTX).
3. All types of fiber cables with different structures.
Temperature Range
Operating :-40℃ to +70℃ Storage :-40℃ to +70℃
Characteristic
1，Excellent mechanical and temperature performance. 2，Critical protection to fibers.
Standards
Comply with stand YD/T 901-2009 as well as IEC 60794-1
Optical Charactristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameter
| Fiber count | Cablediameter(mm) | Cableweight(kg/km) | Tension(N) | Crush(N/100mm) | Bending radius(mm) | |||
| Long term | Short term | Long term | Short term | static | Dynamic | |||
| 2~30 | 9.5*19.1 | 160.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 32~36 | 10.1*19.7 | 170.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 38~60 | 10.8*20.4 | 180.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 62~72 | 12.4*22.0 | 195.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 74~96 | 13.1*22.7 | 222.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 78~120 | 15.7*22.3 | 238.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 122~144 | 15.5*25.1 | 273.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
Noted
1，Only a part of Figure-8 Optical cables are listed in the table. Cables with other specifications can be inquired.
2，Cables can be supplied with a range of single mode or multimode fibers.
3，Specially designed Cable structure is available on request.
Packaging Details
1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.
Sheath mark
The following printing(white hot foil indentation)is applied at 1meter intervals.
Structure Design
Application: Self supporting Aerial
1. High performance optical network operating.
2. High speed optical routes in buildings (FTTX).
3. All types of fiber cables with different structures.
Temperature Range
Operating :-40℃ to +70℃ Storage :-40℃ to +70℃
Characteristic
1，Excellent mechanical and temperature performance. 2，Critical protection to fibers.
Standards
Comply with stand YD/T 901-2009 as well as IEC 60794-1
Optical Charactristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameter
| Fiber count | Cablediameter(mm) | Cableweight(kg/km) | Tension(N) | Crush(N/100mm) | Bending radius(mm) | |||
| Long term | Short term | Long term | Short term | static | Dynamic | |||
| 2~30 | 9.5*19.1 | 160.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 32~36 | 10.1*19.7 | 170.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 38~60 | 10.8*20.4 | 180.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 62~72 | 12.4*22.0 | 195.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 74~96 | 13.1*22.7 | 222.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 78~120 | 15.7*22.3 | 238.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
| 122~144 | 15.5*25.1 | 273.0 | 2000 | 6000 | 300 | 1000 | 10D | 20D |
Noted
1，Only a part of Figure-8 Optical cables are listed in the table. Cables with other specifications can be inquired.
2，Cables can be supplied with a range of single mode or multimode fibers.
3，Specially designed Cable structure is available on request.
Packaging Details
1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.
Sheath mark
The following printing(white hot foil indentation)is applied at 1meter intervals.
