GYXTC8Y 4 Core Figure-8 Aerial Fiber Optic Cable Self-Supporting Unarmored Cable

Product Overview

The GYXTC8Y 4 Core Fiber Optic Cable is a lightweight, self-supporting figure-8 aerial cable designed for outdoor telecommunications, broadband, and last-mile FTTH networks. Built with a compact unicore (central loose tube) design, it houses 4 high-quality single-mode optical fibers inside a water-blocking gel-filled central tube, ensuring low optical attenuation and protection against moisture ingress.

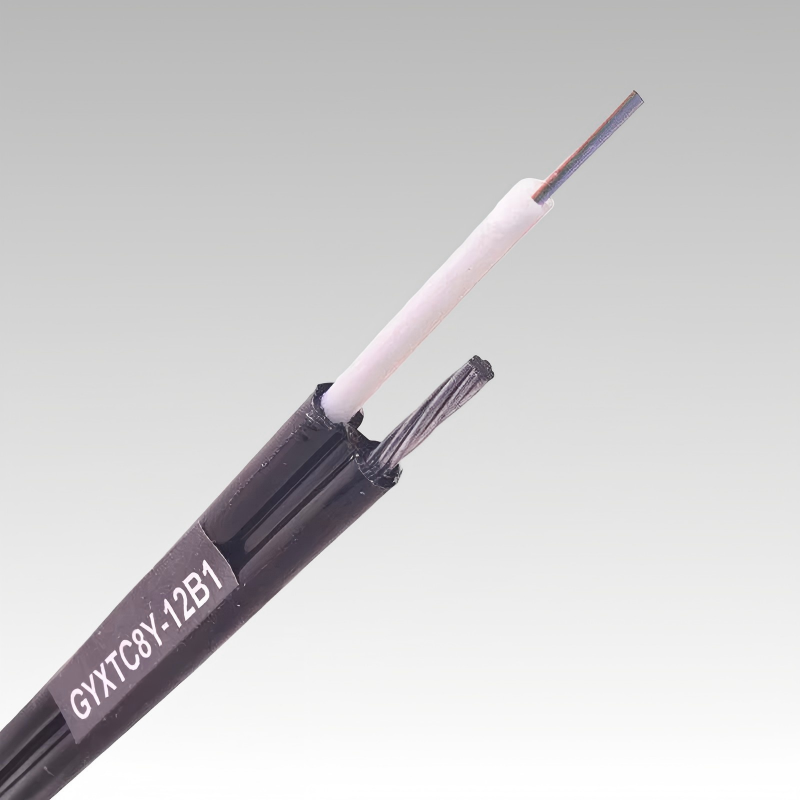

Unlike heavy armored cables, the GYXTC8Y features a non-armored, ultra-lightweight structure that reduces cable weight and wind loading on utility poles. The cable is supported by an integrated messenger wire bound within a durable figure-8 Polyethylene (PE) jacket. To meet various span and tensile requirements, the messenger wire is fully customizable, with options for either a galvanized steel strand wire or a single solid steel wire.

Primary Application Scenarios

Aerial FTTH Distribution Lines: Directly deployed along residential and rural utility poles for fast, low-cost optical fiber drop links.
Pole-to-Pole Outdoor Networks: Ideal for overhead self-supporting installation across short-to-medium spans without needing separate messenger lashing wires.
Campus & Smart City Interconnects: Overhead connection between adjacent industrial buildings, surveillance cameras, and outdoor network nodes.
Cost-Sensitive Overhead Feeders: Lightweight transmission line reducing structural strain on existing pole infrastructure.

Technical Specifications

Cable Feature	Technical Specification Details
Cable Model	GYXTC8Y Figure-8 Self-Supporting Cable
Fiber Count	4 Cores

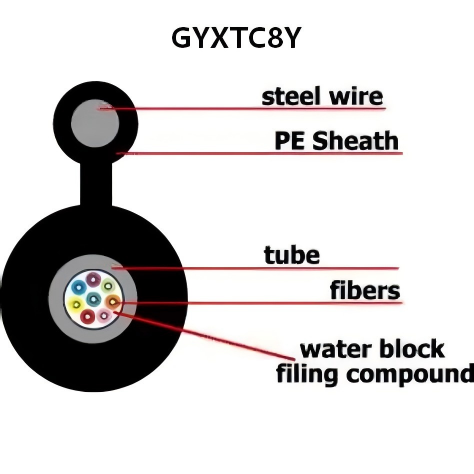

Cable Structure	Central Loose Tube / Unarmored Figure-8 Design
Fiber Type	Singlemode G.652.D (Low Attenuation)
Messenger Wire Options	Galvanized Steel Strand Wire / Single Solid Steel Wire (Customizable)
Armoring Type	Non-Armored (Unarmored Design)
Outer Sheath Material	High-Density Polyethylene (HDPE) / UV-Resistant
Water Blocking	Waterproof Gel Filling Compound
Operating Temperature	-40°C to +70°C
Installation Method	Overhead / Self-Supporting Aerial

Key Performance Advantages

Ultra-Lightweight Unarmored Structure: Eliminates heavy metallic armor layers, resulting in a smaller outer profile, lower weight, and reduced cable sag under wind loads.
Customizable Messenger Wire: Choose between multi-strand galvanized steel wire or a single heavy-duty solid steel wire based on specific span and tension requirements.
Integrated Figure-8 Construction: Combines the optical tube and messenger wire in one continuous extrusion, streamlining installation and lowering deployment labor costs.
UV-Resistant PE Outer Jacket: High-density black PE jacket ensures excellent protection against UV degradation, extreme rain, and temperature fluctuations.

GYXTC8Y 4 Core Figure-8 Aerial Fiber Optic Cable Self-Supporting Unarmored Cable

Flexible Factory Customization: We offer customized messenger wire diameters, sheath meter-markings, color codes, and export reel lengths to match your exact project specifications.
Rigid Quality Inspection: Every reel of GYXTC8Y cable undergoes strict tensile pulling, water penetration, and optical attenuation testing in our laboratory before shipment.

Fiber Type	G652D/G657, Single Mode
Length	1 Km 2km 3km Per Drum, Or Customized Length
Operating Temperature	-40~75,20 ~+70,-40 ~ +60 C
Installation	Self-supporting Aerial
Structure	Loose Tube,Unitube
Fiber Count	4 Cores
