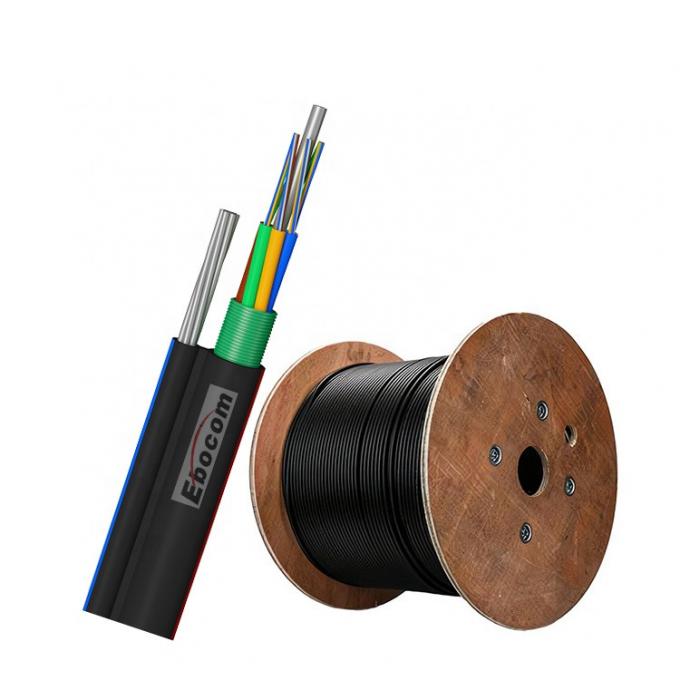

Figure 8 Gytc8y Fiber Optical Cable Layer Stranded Self-Supporting g652d SM aerial internet wire construction

Figure 8 Gytc8y Fiber Optical Cable Layer Stranded Self-Supporting g652d SM aerial internet wire construction

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO TLC
Model Number	Figure 8 Gytc8y
Minimum Order Quantity	2000M
Price	EXW ≥2000m $0.21/M ≥5000m $0.19/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 day
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

Application:

Loose tube type figure-8 cable with wire/strand metal center reinforcement and moisture-proof inner sheathing with sling wire suitable for pole to pole or pole to house overhead installation. The tubes contain single mode or multimode fibers that are color coded according to a color coding scheme.

Features:

Low attenuation, low dispersion
Excellent mechanical and environmental performance due to correct design, precise residual length and wiring process
3.twisted steel tape armor, to ensure better moisture resistance, resistance to side pressure
Compact structure, light weight, suitable for self-support.

Mechanical & Environmental Characteristics:

Item		Characteristics
Item	GYTC8S 2-72	GYTC8S 74-96	GYTC8S 98-144
Tensile Strength	9000N	10000N	12000N
Crush Resistance	1,000 N/100 mm
During Installation		20 Times Cable Diameter
After Installation		10 Times Cable Diameter
Messenger wire	Dirmeter: 1.2mmx7
Storage		-50°C to +70°C
Operating		-40°C to +60°C

Technical note: cable model and mechanical ratings shall be confirmed against the approved datasheet.

Cable Type	GYTC8Y
Fiber Type	SM
Application	Long-distance Communication, LAN
Recommended Installation Methods	Aerial
Environment	Outdoor
Temperature Range	-40ºC To 70ºC
