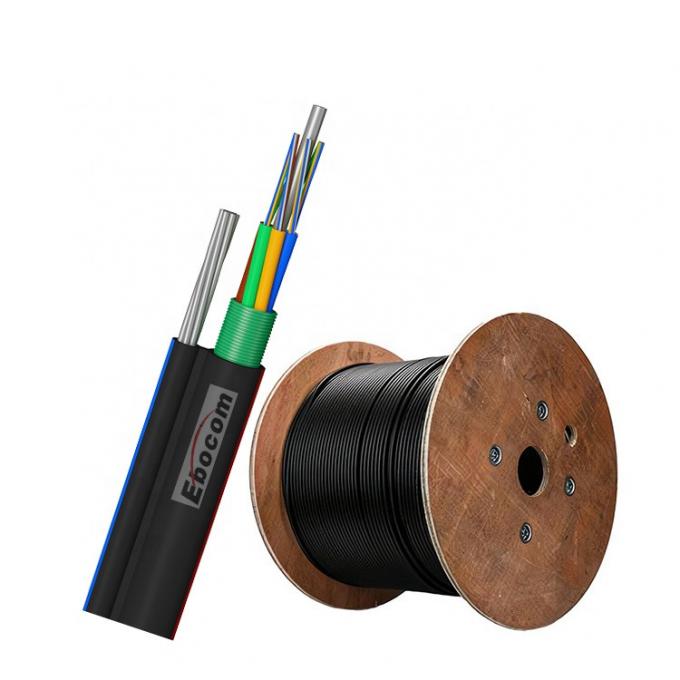

GYTC8S Fiber Optic Cable 4 6 12 48 96 core G652D PE jacket aerial Outdoor Loose Tube Self Support internet construction
| Place of Origin | Shandong，China |
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | GYTC8S |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.42/M ≥5000m $0.4/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 day |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product Description:
The GYTC8S armoured loose tube fiber optic cable, It is designed with single-mode/multimode fibers that are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound, which provides protection against moisture and other environmental factors.
A steel wire is located at the center of the core as a metallic strength member, which gives the cable superior strength and durability. The tubes and fillers are stranded around the strength member to create a compact and circular cable core. Once a PSP (polyester tape) is applied around the cable core, this part of the cable, along with the stranded wires as the supporting part, is completed with a PE sheath to be a figure-8 structure.
The armored design of the GYTC8S cable provides additional protection against damage from external factors, such as rodents and harsh weather conditions. This makes it ideal for outdoor installations, including aerial, duct, and direct-buried applications.
Features:
– Single-mode/multimode fibers enclosed in a loose tube made of high modulus plastic
– Water-resistant filling compound for protection against moisture and environmental factors
– Steel wire as a metallic strength member
– Compact and circular cable core design
– Armored for additional protection against damage
– Ideal for outdoor installations
Applications:
The GYTC8S armoured loose tube fiber optic cable is ideal for a range of applications, including:
– Telecommunications networks
– Broadband networks
– CCTV/Monitoring systems
– Active device terminations
– CATV networks
– Local area networks (LANs)
– Optical access networks (OANs)
– Outdoor installations, including aerial, duct, and direct-buried applications
Mechanical Parameters:
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm |
| GYTC8S 2-30 | 2-30 | 9.5 x 19.1 | 160.0 | 2000/6000 | 300/ 1000 |
| GYTC8S 32-36 | 32-36 | 10.1 x 19.7 | 170.0 | 2000/6000 | 300/ 1000 |
| GYTC8S 38-60 | 38-60 | 10.8 x 20.4 | 180.0 | 2000/6000 | 300/ 1000 |
| GYTC8S 62-72 | 62-72 | 12.4 x 22.0 | 195.0 | 2000/6000 | 300/ 1000 |
| GYTC8S 74-96 | 74- 96 | 13.1 x 22.7 | 222.0 | 2000/6000 | 300/ 1000 |
| GYTC8S 98-120 | 98-120 | 15.7 x 22.3 | 238.0 | 2000/6000 | 300/ 1000 |
| GYTC8S 122-144 | 122-144 | 15.5 x 25.1 | 273.0 | 2000/6000 | 300/ 1000 |
| Cable Type | GYTC8S |
| Fiber Type | SM , MM |
| Application | Long-distance Communication, LAN |
| Recommended Installation Methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40ºC To 70ºC |
