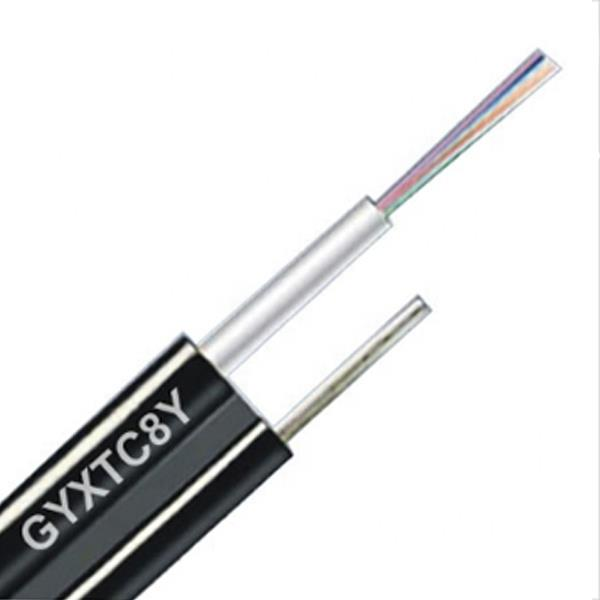

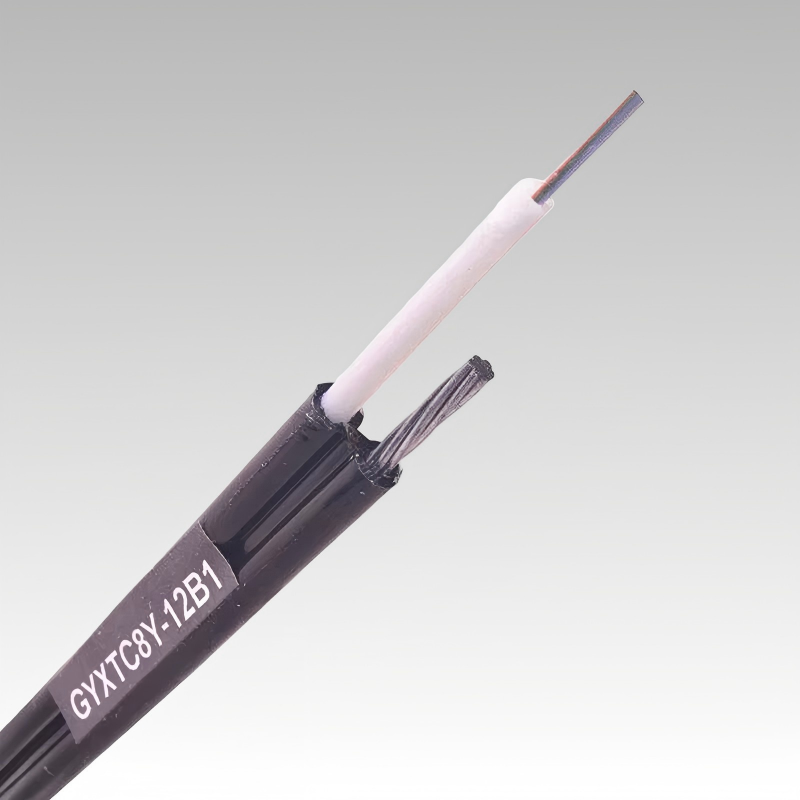

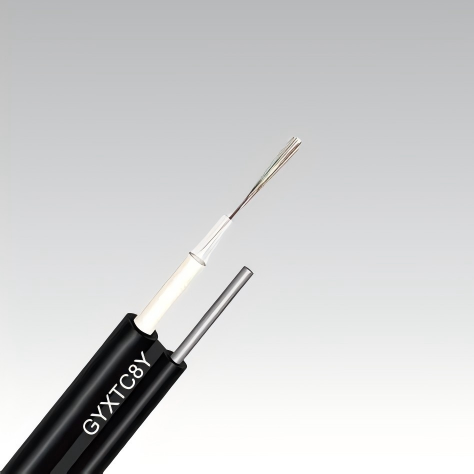

GYXTC8Y 4 Core Figure-8 Aerial Fiber Optic Cable is a self-supporting outdoor fiber optic cable designed for aerial installation in FTTH and telecom access networks.
This figure-8 fiber cable combines the optical fiber unit and messenger wire into one structure, eliminating the need for additional support wires during installation. The lightweight and flexible design makes it suitable for overhead communication networks, rural broadband projects, and last-mile fiber deployment.
With a central loose tube structure, water-blocking materials, and PE outer sheath, the GYXTC8Y aerial fiber cable provides reliable protection and stable optical transmission for outdoor applications.
- 4 core single mode fiber optic cable design
- Figure-8 self-supporting aerial structure
- Integrated messenger wire for easy installation
- Lightweight and flexible for overhead applications
- Unarmored design for cost-effective deployment
- Excellent moisture and environmental resistance
- Suitable for FTTH and telecom access networks
- Factory direct supply with OEM customization available
- FTTH (Fiber to the Home) network
- Outdoor aerial fiber installation
- Telecom access network
- Broadband communication projects
- Rural fiber optic deployment
- Last mile fiber connection
- ISP and cable operator networks
| Item | Description |
|---|---|
| Product Name | GYXTC8Y Figure-8 Aerial Fiber Optic Cable |
| Fiber Count | 4 Core |
| Cable Type | Self-Supporting Figure-8 Cable |
| Fiber Type | Single Mode G652D / G657A (Optional) |

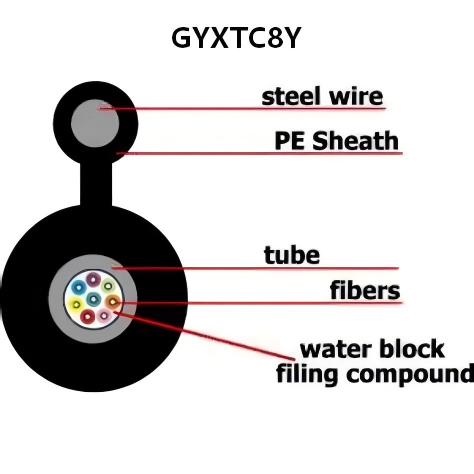

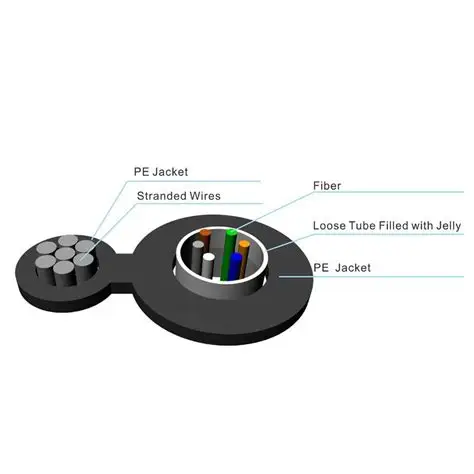

| Cable Structure | Central Loose Tube |
| Strength Member | Steel Messenger Wire |
| Armor Type | Unarmored |
| Outer Sheath | PE Jacket |
| Installation | Aerial / Overhead |
| Application | Outdoor Telecom Network |
GYXTC8Y self-supporting aerial fiber optic cable is a practical solution for outdoor fiber deployment where fast installation and cost efficiency are required.
The figure-8 structure provides strong mechanical support while reducing installation complexity. It is widely used by telecom contractors, ISPs, and network installers for FTTH and broadband access projects.
| Span Length | 120M |
| Central Strength | FRP&Steel Wire |
| Samples | Free |
| Construction | Loose Tube |
| Standards Compliance | ITU-T, IEC, Telcordia GR-20 |
| Core Count | 4 Core |
| Loose Tube Diameter | 2.0 Mm |
| Fiber Options | Itu G652D, G657A, Om1, Om2, Om3, Om4 |
| Length | 2km/3km/4km |
| Central Strength Member | Non-Metallic |
| Outer Sheath Material | PE |
| Material Jacket | Black Polyethylene (PE) |
| Cable Structure | Uni-Loose Tube Non Armor |
| Fiber Counts | 1-144cores |
| Water Blocking | Yes, With Water-blocking Yarns Or Gels |
