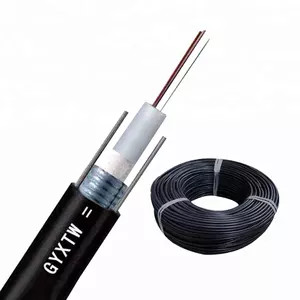

GYXTW 24-Core HDPE Aerial Fiber Cable with Steel Messenger
2 4 6 8 16 24 core Aerial Armoured Gyxtw 1km Price Fiber Optic Cable Outdoor

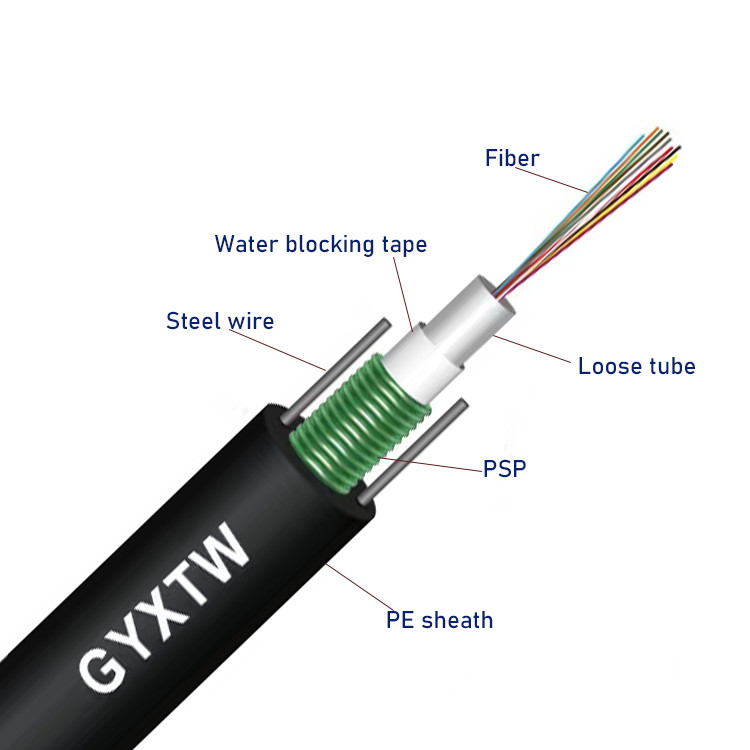

The GYXTW cable consists of 250µm optical fiber ribbons placed into a loose tube made from a high-modulus material, filled with a gel filling compound. The loose tube is coated with a PSP (Polyester Steel Tape) for longitudinal protection. To prevent water ingress, a water-blocking material is inserted between the metallic strength member and the loose tube, ensuring the cable’s compactness and protection against longitudinal water seepage. Two parallel steel wires are positioned on either side, and the cable is finally completed with a PE outer sheath.
Product Characteristics
- The loose tube material offers excellent mechanical properties and temperature stability.
- It is highly resistant to hydrolysis and has superior strength.
- The tube is filled with a specialized compound that provides essential protection for the fibers.
- It offers strong lateral pressure resistance while maintaining flexibility.
- The double chrome-plated plastic-coated steel tape (PSP) enhances the moisture resistance of the optical cable.
- The two parallel steel wires ensure sufficient tensile strength.
- The cable has a small diameter, is lightweight, and easy to install.
Optical Fibre Performance:
| Type | Attenuation(+20℃) | Bandwidth | Numerical aperture | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | ||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
Technical Performance
| Model | Fiber
count |
Tube count | Filling
rope count |
Weight (kg/km) |
Tension
Long/Short term |
| GYXS/GYXTW-2~12Xn | 2~12 | 82 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-14~24Xn | 14~24 | 127 | |||
| GYXS/GYXTW-2~12Xn | 2~12 | 124 | 1000/3000 | ||
| GYXS/GYXTW-14~24Xn | 14~24 | 147 |
Environmental Characteristics
• Transport/storage temperature: -40℃ to +70℃
Application
• Outdoor Duct, overhead
product packing :
1). 4km/reel
2). 5km/reel Color Box and OEM Package available.
20″ Container Full Load: 400km.
40″ Container Full Load: 800km.
FAQ:
- Are you the actual manufacturer?
Yes, we are a factory based in Guangzhou, China. You are welcome to visit us! - What is the minimum order quantity?
Our minimum order is 1KM. We support new projects, and trial orders are available. - Can I get a sample?
Yes, we offer free samples. You only need to cover the shipping cost. - What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal. - What is the delivery time?
Typically, it’s 3-7 working days, depending on the quantity. - Can you provide customized products and logos?
Yes, we offer OEM & ODM services. Feel free to reach out!
Specifications
| Fiber Type | G652D |
| Oem | Available |
| Application | Aerial,Overhead |
| Number Of Conductors | 2/12/24 Core |
| Structure | Loose Tube |
| Operating Temperature | -40 ~ +60 C |
| Outer Sheath | PE, LSZH, OFNR |

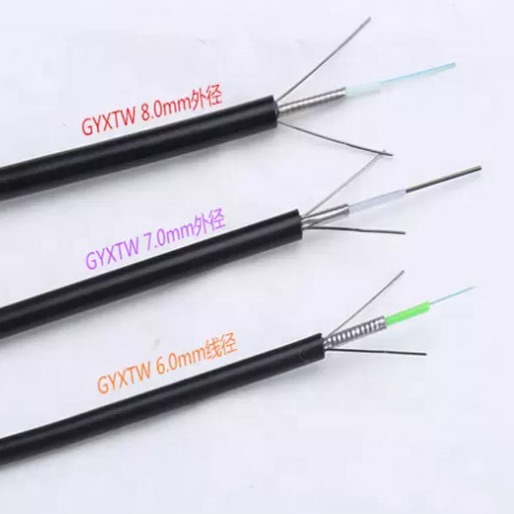

| Outer Diameter | 6/7/8/9mm |
| Blindado | Sí |
| Cable Brand | Jiqian |
| Installation | Self- Supporting Aerial |
| Package | Wooden Drum/Customized |
| Strength | FRP |
| Type Of Fiber | G.652D |
| Cable Type | Single-mode |
| Self Supporting | Steel Messenger |
| Rodent Protection | Yes |
| Sheath | PE/LSZH/PVC |
| Colore | Black |
| Loose Tube | PBT |
| Water Blocking Tape | Yes |
Basic Information
| Place of Origin | CHINA |
| Brand Name | Jiqian/Customize |
| Certification | ISO9001, FCC, ROHS/CCC |
| Model Number | GYXTW |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 2-4day |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100km per 2 day |
