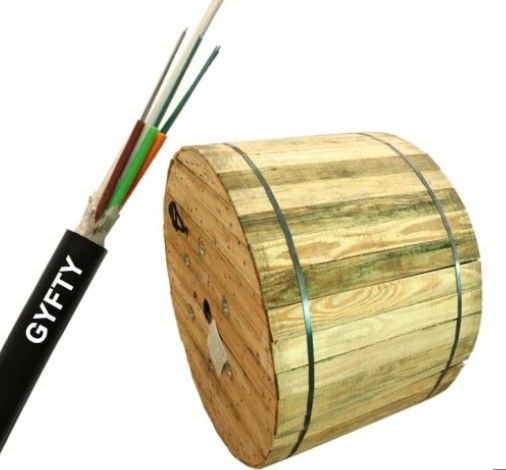

Outdoor GYFTY Aerial Fiber Optic Cable 12 Core with High Quality communication
| Place of Origin | Shandong，China |
| Brand Name | JQ |
| Certification | ISO |
| Model Number | GYFTY |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.028/M ≥5000m $0.024/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |

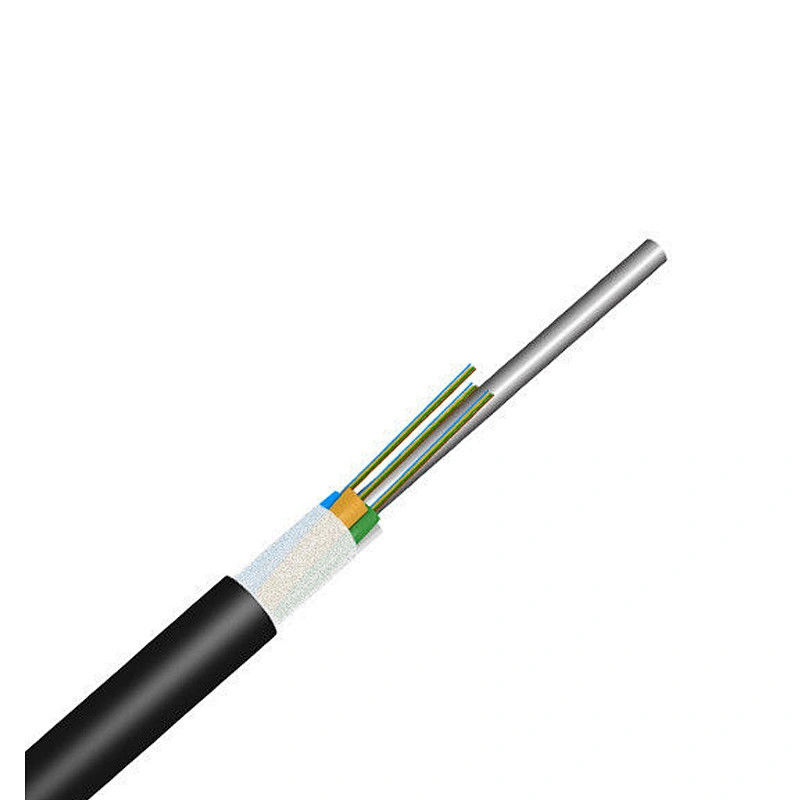

GYFTY fiber optic cable- Loose tube style, optical fiber cable with non-metallic central strength member of FRP and peripheral strength members with moisture barrier inner sheathed. Cable protected by a black PE oversheath, suitable for duct or aerial application. Tubes contain optical single-mode or multimode fibers colour color coding scheme.
Characteristics:
1.Excellent mechanical and temperature performance
2.Special loose tube filling compound ensure a critical protection of fiber and resist the water
3.100% core filling water prevent cable jelly to ensure the cable watertight
4.Single nonmetallic FRP as the central strength member
5.Outer sheath protects cable from ultraviolet radiation
Installation: Duct, Non self-supporting aerial
Applications:
Long distance, LAN communication
Standards: YD/T 901 / IEC 60794-3-10
Specifications
| Technical data: | ||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.2 | 110 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15.0 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| Fiber Count | 12 Core GYFTY Cable |
| Fiber Sort | Single Mode: G652,G657, Multi Mode: OM1,OM2,OM3 |
| Jacket Material | PE,LSZH (customized). |
| The Fiber And Tube Color | According To Stranded Color, Or Customized. |
| Length Of Cable | Generally Is 2KM/drum, Or Customized. |
| Other Requirement | Can Be Negotiated. |
