24 Core ADSS Fiber Optic Cable 100M Span With Aramid Yarn Strength Member

Place of Origin	China
Brand Name	JQ
Certification	ISO
Model Number	ADSS-24B1.3-100M
Minimum Order Quantity	2000 M
Price	0.1 USD per Meter
Standard Packaging	Plywood Drum or Custimized
Delivery Time	3-10 days
Payment Terms	L/C, T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

Reliable Fiber Transmission Overhead

This 24 core ADSS (All-Dielectric Self-Supporting) fiber optic cable is purpose-built for 100-meter pole-to-pole spans, widely used in overhead fiber communication networks, especially alongside medium-voltage power lines.

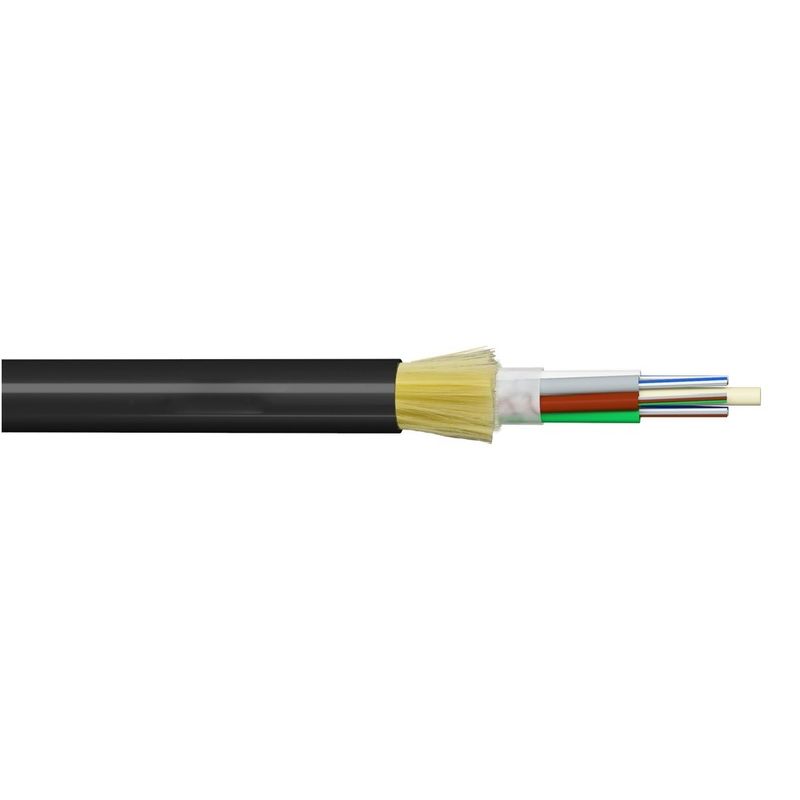

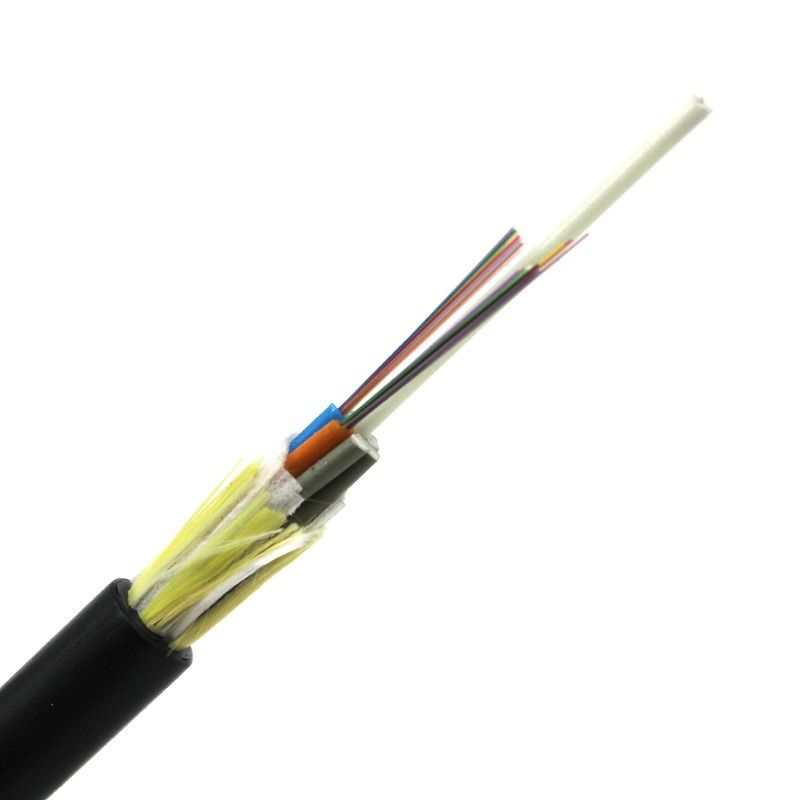

Constructed with a central FRP (Fiber Reinforced Plastic) strength member, surrounded by water-blocked loose tubes, and tightly reinforced with aramid yarn, this cable delivers the mechanical strength and environmental resilience needed for long-term aerial installations—without any metal components or grounding.

Its compact single jacket HDPE sheath is designed to resist UV, moisture, and temperature changes, ensuring the cable remains stable and easy to handle throughout its service life.

Cable Features

24 single-mode fibers (G.652D / G.657A1)
Optimized for 100-meter span aerial deployments
All-dielectric – designed for environments where electromagnetic interference should be minimized
High-tensile aramid yarn – provides strong self-supporting capability
Gel-filled loose tubes – protects fiber from moisture and vibration
Single HDPE jacket – outdoor-grade, abrasion and UV resistant
No grounding or messenger wire required

Application Fields

Overhead aerial fiber on medium-voltage power poles
Smart grid and utility communication systems
Suburban FTTx feeder routes with pole-to-pole spans
Rural broadband build-outs
Perimeter CCTV or IoT node connectivity

Technical Parameters

Item	Specification
Fiber Count	24 cores
Fiber Type	Single Mode G.652D / G.657A1

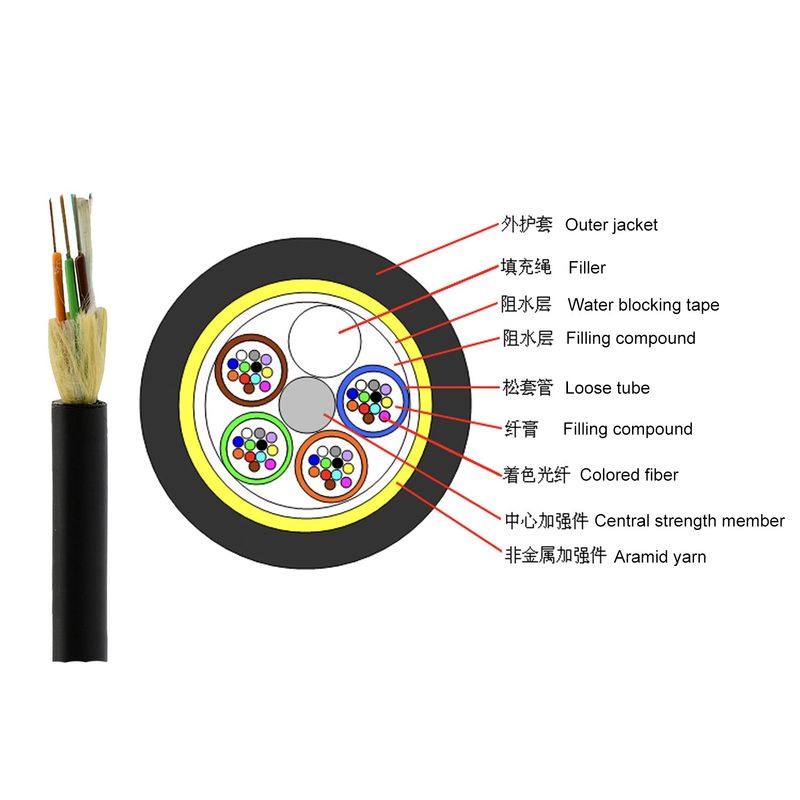

Cable Structure	Central loose tube, stranded around FRP
Strength Elements	Central FRP + aramid yarn
Outer Sheath	Black HDPE, UV-resistant
Span Design	Up to 100 meters (standard configuration)
Tensile Strength	Short-term: ≥ 2500N / Long-term: ≥ 1000N
Crush Resistance	≥ 1000N / 100mm
Diameter	Approx. 11.5 ± 0.5 mm
Weight	Approx. 105 kg/km
Temperature Range	–40°C to +70°C
Bending Radius	Static ≥10×OD / Dynamic ≥20×OD
Water Blocking	Gel + water-swell yarn
Flame Rating	IEC 60332-1 / RoHS Compliant
Standards	IEC 60794-1, ITU-T G.652, ISO/IEC 11801
