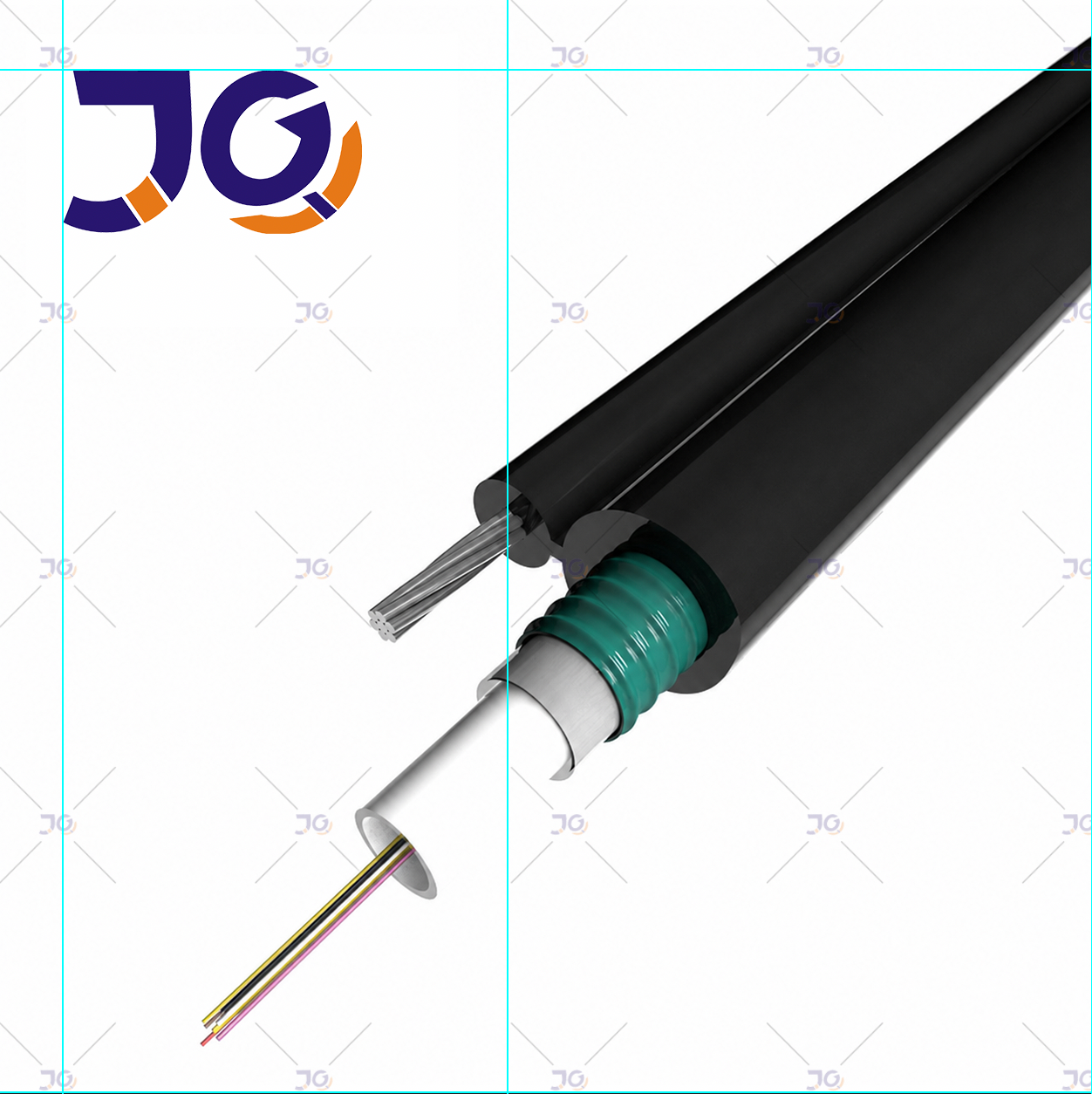

GYXTC8S Figure-8 Steel-Tape Aerial Fiber Cable

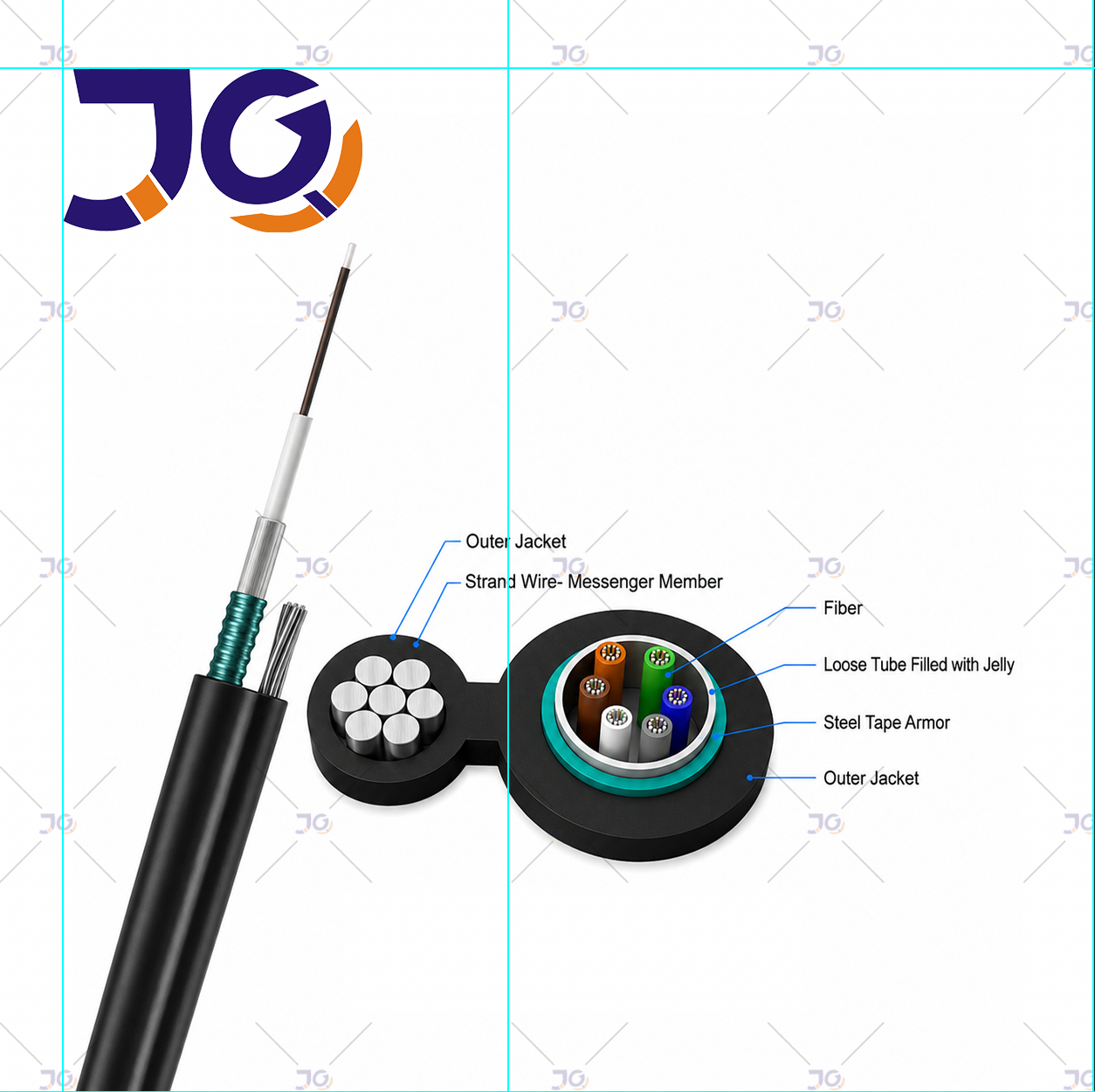

In the GYXTC8S cable,single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound.PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices of it.Then.this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
Product Name: Figure 8 Cable with Steel Tape
Cable Type: GYXTC8S
Application: Self supporting Aerial
1.High performance optical network operating.
2.High speed optical routes in buildings (FTTX).
3.All types of fiber cables with different structures.
Structure Design
Application: Self supporting Aerial
1.High performance optical network operating.
2.High speed optical routes in buildings (FTTX).
3.All types of fiber cables with different structures.
Temperature Range
Operating :-40℃ to +70℃
Storage :-40℃ to +70℃
Characteristic
1.Excellent mechanical and temperature performance.
2.Critical protection to fibers.
Standards
Comply with stand YD/T 1155-2001 as well as IEC60794-1.
Specification
| Cable Count | Out sheath Diameter（MM) |
Weight (KG/Km) |
Minimum allowable Tensile Strength(N) |
Minimum allowable Crush Load（N/100mm) |
Minimum Bending Radius(MM) |
Storage temperature （℃） |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 4 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 6 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 8 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 12 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
How to Ensure the Quality and Performance of Your Fiber Optic Cable?
We control the products quality from the raw material to the finish produts All the raw material should be tested to match the Rohs standard when they arrived at our manufacture.We control the quality during the producing process by advanced technology and equipments. We test the finished products according to the test standard. Approved by various professional optical and communication product institution , GL also conduct various in-house testing in its own Laboratory and Test Center. We also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products(QSICO).
Quality Control – Test Equipment and Standard:
Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].
Structure Design:
Application: Self supporting Aerial
1.High performance optical network operating.
2.High speed optical routes in buildings (FTTX).
3.All types of fiber cables with different structures.
Temperature Range:
Operating :-40℃ to +70℃
Storage :-40℃ to +70℃
Characteristic:
1.Excellent mechanical and temperature performance.
2.Critical protection to fibers.
Standards:
Comply with stand YD/T 1155-2001 as well as IEC60794-1.
Specification:
| Cable Count | Out sheath Diameter（MM) |
Weight (KG/Km) |
Minimum allowable Tensile Strength(N) |
Minimum allowable Crush Load（N/100mm) |
Minimum Bending Radius(MM) |
Storage temperature （℃） |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 4 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 6 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 8 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |
| 12 | 3.8×5.5 | 52.00 | 1500 | 200 | 1200 | 200 | 20D | 10D | -40+60 |

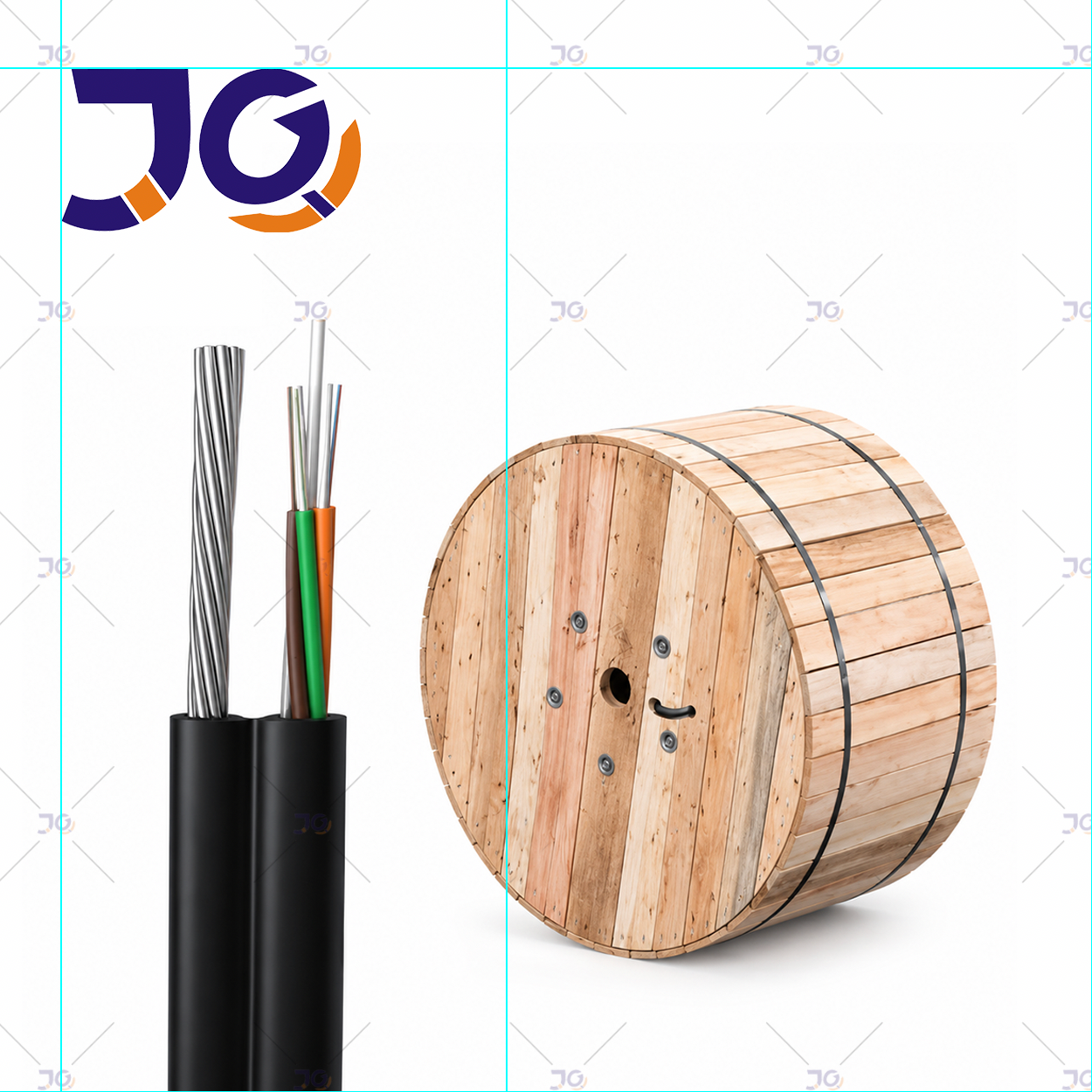

Our Packing and Delivery Process
